Products specifications

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 250
Number of Logic Elements/Cells 4000
Total RAM Bits 193536
Number of I/O 112
Voltage - Supply 2.85V ~ 3.465V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)

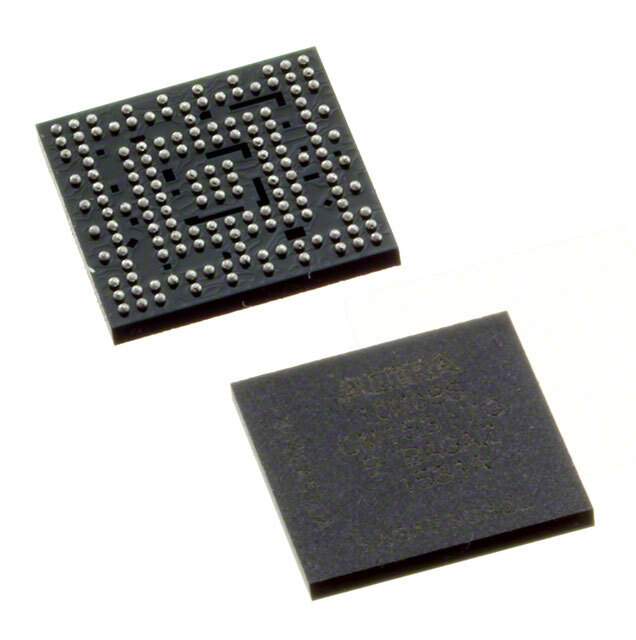

Package / Case 153-VFBGA
Supplier Device Package 153-MBGA (8x8)
Standard Package 348
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1338186-10M04SAM153C8G
Ultra Librarian 3D Model Ultra Librarian 10M04SAM153C8G CAD Model

Description

The MAX® 10 FPGA from Intel is a highly versatile and efficient device that is designed to be used in a wide range of applications.

  • I/O Pins: 112
  • LABs/CLBs: 250
  • Logic Elements/Cells: 4000
  • RAM Bits: 193536
  • Operating Voltage: 2.85V to 3.465V
  • Operating Temperature: 0°C to 85°C
  • Package: 153-VFBGA
