Products specifications

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Cyclone® IV E
Package Tray
Number of LABs/CLBs 1395
Number of Logic Elements/Cells 22320
Total RAM Bits 608256
Number of I/O 153
Voltage - Supply 1.15V ~ 1.25V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 125°C (TJ)

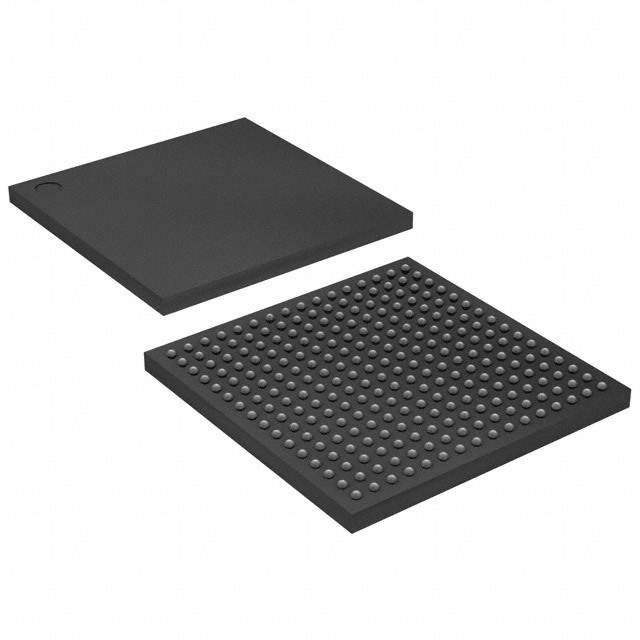

Package / Case 256-LBGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number EP4CE22
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 970212
Standard Package 90
Win Source Part Number 1006240-EP4CE22F17A7N
Ultra Librarian 3D Model Ultra Librarian EP4CE22F17A7N CAD Model

Description

The EP4CE22F17A7N is a Cyclone IV E series Field Programmable Gate Array (FPGA) from Intel (formerly Altera). This FPGA family is designed for low-cost, low-power applications, making them a versatile solution for a wide array of embedded systems and digital logic designs. They strike a balance between performance and power efficiency.

Applications

  • Motor Control
  • Image Processing
  • Industrial Automation
  • Embedded Processors
  • Data Acquisition Systems
  • Communication Systems
  • Medical Devices

Features

  • 22,320 Logic Elements (LEs): Provides a programmable fabric for implementing complex digital circuits.
  • 594 Kbits of Embedded Memory: Offers on-chip memory resources for data storage and processing.
  • 66 Multipliers: Includes dedicated multipliers for efficient digital signal processing (DSP) operations.
  • 168 User I/O Pins: Provides flexible connectivity to external devices.
  • Global Clock Networks: Facilitates efficient clock distribution throughout the device.
  • Internal Oscillator: Offers an on-chip oscillator for clock generation.
  • Nios II Embedded Processor Support: Enables the integration of a soft-core Nios II processor.
  • Advanced Packaging: Available in a variety of packages to suit different board layouts.
  • Low Power Consumption: Designed for power-sensitive applications.

Benefits

  • Flexibility: Allows designers to implement custom digital logic functions.
  • Integration: Can integrate multiple functions into a single device.
  • Low Cost: Provides a cost-effective solution for a wide range of applications.
  • Low Power: Reduces power consumption, making it suitable for portable and battery-powered devices.
  • Fast Prototyping: Enables rapid prototyping and development of custom hardware solutions.
  • Time-to-Market: Allows for faster time-to-market compared to custom ASIC designs.

Additional Details

The EP4CE22F17A7N is packaged in a 144-pin TQFP (Thin Quad Flat Pack) package. The 'A7' in the part number indicates the speed grade and temperature range. The device is configured using an external configuration device or via JTAG. The FPGA supports various memory interfaces, including SDRAM and SRAM. The operating temperature range is typically 0°C to 85°C. Intel's Quartus Prime software is used for design entry, simulation, and synthesis. The software provides tools for place and route, timing analysis, and power analysis. The device can be used to implement custom controllers, data acquisition systems, and digital signal processing algorithms. It's commonly used in industrial control systems, communication equipment, and medical devices. Detailed datasheets and application notes provide specific information on device characteristics, pinouts, and programming guidelines.

The EP4CE22F17A7N offers a good balance of performance, cost, and power consumption, making it a suitable choice for a wide variety of embedded applications.
