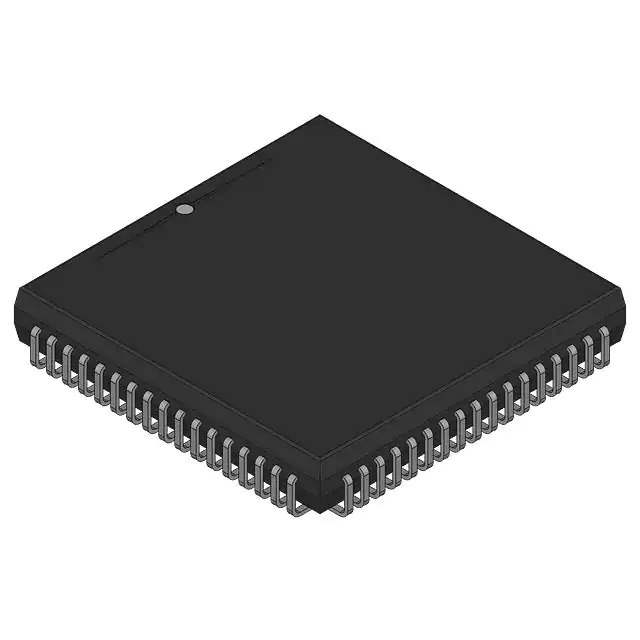

N802868 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Package Bulk
Product Status Active
Core Processor 80286
Number of Cores/Bus Width 1 Core
Speed 8MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5V
Temperature Range - Operating 0°C ~ 85°C (TC)
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Standard Package 24 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.31.0001
Win Source Part Number 249332-N802868
Ultra Librarian 3D Model Ultra Librarian N802868 CAD Model

Description

The 249332-N802868 is a microprocessor from Intel, specifically designed for embedded applications.

  • Core Processor: 80286
  • Number of Cores: 1
  • Speed: 8MHz
  • RAM Controllers: DRAM
  • Voltage (I/O): 5V
  • Package: 68-LCC (J-Lead)
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C to 85°C
  • Product Status: Active
  • Packaging: Bulk
  • Standard Package: 24 pieces
