Products specifications Report Issue?

Categories Uncategorized
Manufacturer INTERNATIONAL RECTIFIER
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 826059-IR140CSPTR
Ultra Librarian 3D Model Ultra Librarian IR140CSPTR CAD Model

Description

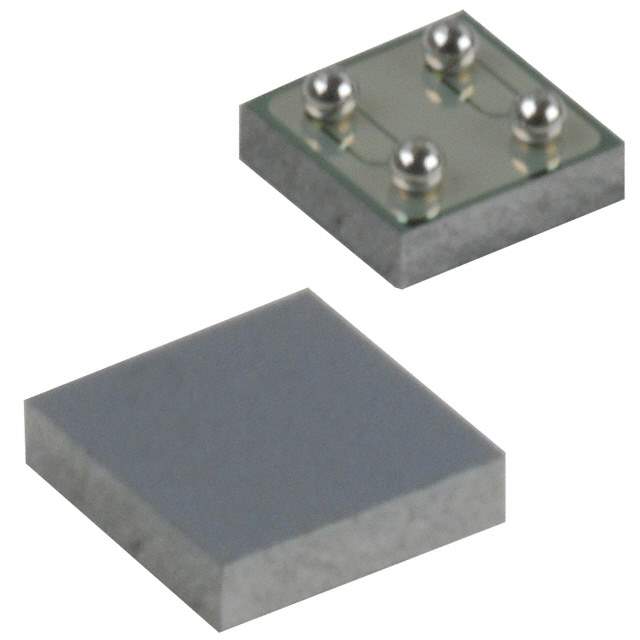

The IR140CSPTR is a surface-mount Schottky rectifier from International Rectifier (now Infineon Technologies). Schottky rectifiers are known for their fast switching speed and low forward voltage drop, making them suitable for applications requiring efficient rectification.

Applications

  • Switch-Mode Power Supplies (SMPS): Used as rectifiers in the output stage to convert AC voltage to DC voltage efficiently.
  • DC-DC Converters: Employed in DC-DC converters for efficient voltage regulation and power conversion.
  • Reverse Polarity Protection: Protects circuits from damage due to incorrect polarity of the power supply.
  • Free-Wheeling Diodes: Used across inductive loads like relays and solenoids to dissipate energy when the load is switched off, preventing voltage spikes.
  • Solar Power Systems: Employed in solar panel systems for bypass diodes or blocking diodes to improve system efficiency and prevent reverse current flow.

Features

  • Low Forward Voltage Drop: Minimizes power losses during conduction, improving overall efficiency.
  • Fast Switching Speed: Allows for high-frequency operation, crucial in modern power electronics.
  • Surface Mount Package: Facilitates automated assembly and compact design.
  • High Surge Current Capability: Can withstand high current surges, enhancing reliability.
  • Low Leakage Current: Reduces power losses in the off-state.

Benefits

  • Improved Efficiency: Low forward voltage drop and fast switching speed contribute to higher overall efficiency in power conversion applications.
  • Compact Design: Surface-mount package enables smaller and more compact designs.
  • Enhanced Reliability: High surge current capability provides robustness and protects against transient events.
  • Reduced Heat Dissipation: Low forward voltage drop minimizes heat generation, improving thermal performance.

Additional Details

The IR140CSPTR typically has a voltage rating of around 40V and a current rating that varies (consult the datasheet). It is available in a small surface mount package such as a SMPD or similar. The operating temperature range is generally -55°C to +150°C. Key parameters to consider when selecting this diode include the forward voltage (Vf), reverse leakage current (Ir), and maximum surge current (Ifsm).

Note: Always consult the official datasheet for the most accurate and up-to-date specifications and application information from Infineon Technologies.
