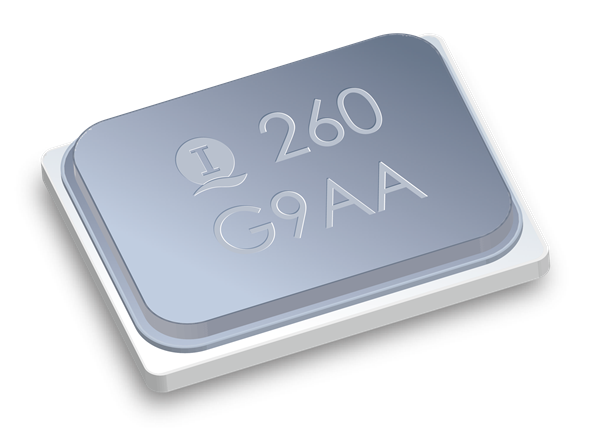

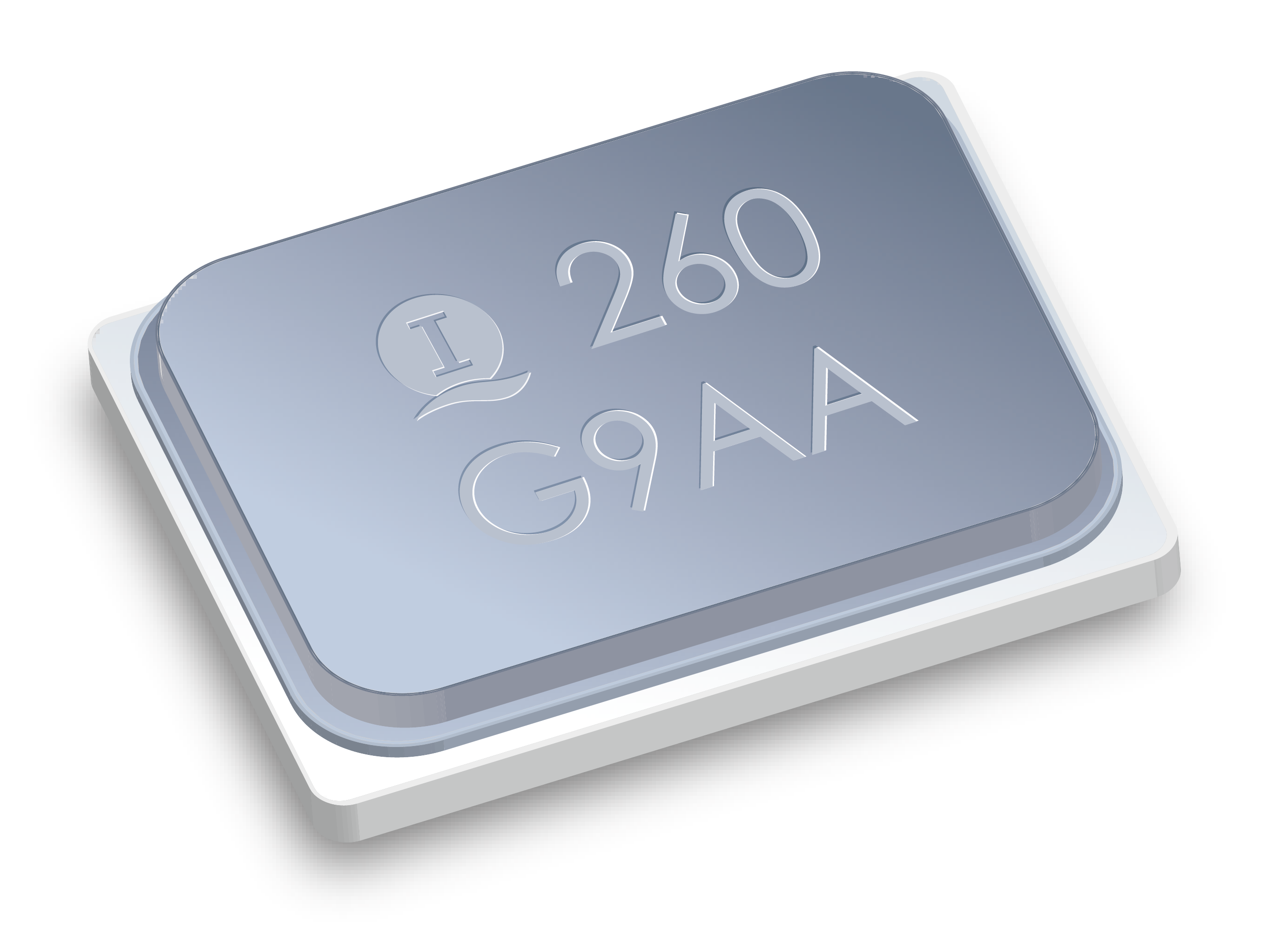

5NMA32000101SF60Q2 Interquip Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

5NMA32000101SF60Q2

Part No 5NMA32000101SF60Q2
Manufacturer Interquip Electronics
Catalog Crystals
Description Crystal 32.000MHz 10PF SMCM-2016H Series
Datasheet
5NMA32000101SF60Q2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Size 2.0x1.6mm
Nominal Frequency Range 16MHz ~ 54MHz
Frequency Tolerance, Ta=25℃± 3℃ ±10ppm, ±20ppm
Load Capacitance 6pF to 12pF or specify
Frequency Tolerance over Operating Temperature Range ±20ppm, ±30ppm or specify
Operating Temperature Range -20°C ~ +70°C, -20°C ~ +85°C or specify
Storage Temperature Range -55°C ~ +125°C
Drive Level 50µW Typ.
DriShunt Capacitance 2pF Max.
Insulation Resistance 500MΩ Min.
Aging ±5ppm/Year Max.
Ultra Librarian 3D Model Ultra Librarian 5NMA32000101SF60Q2 CAD Model

Description

Ceramic epoxy sealed SMD package|Ultra-light weight and ultra-miniature size|Wide frequency range|Best cost-performance option|RoHS Compliant and Pb Free
