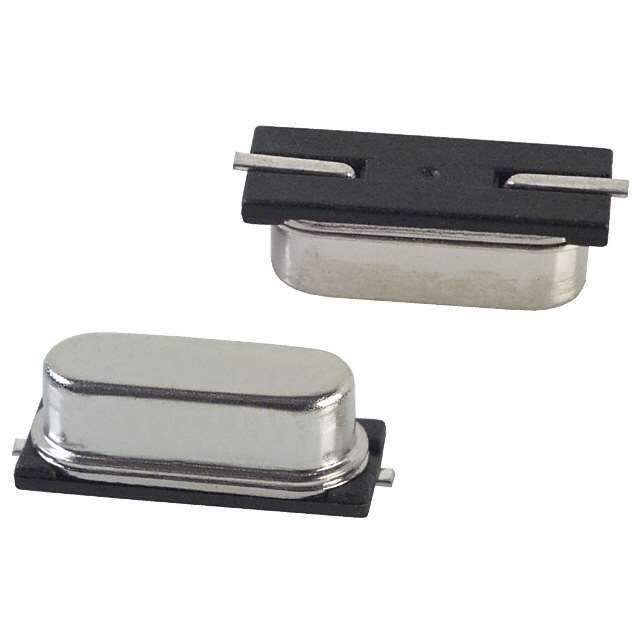

Same model may have multiple batches, images only for reference.
ECS-120-20-5PXDN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-120-20-5PXDN-TR

Part No ECS-120-20-5PXDN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 20PF SMD
Datasheet
ECS-120-20-5PXDN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309808-ECS-120-20-5PXDN-TR
Category Crystals, Oscillators, Resonators >Crystals
Mfr ECS Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±100ppm/°C
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Ultra Librarian 3D Model Ultra Librarian ECS-120-20-5PXDN-TR CAD Model

Description

  • -40 ~ +85°C Temp Range
  • Low Profile
  • Industry Standard Footprint
  • Pb Free/RoHS Compliant
