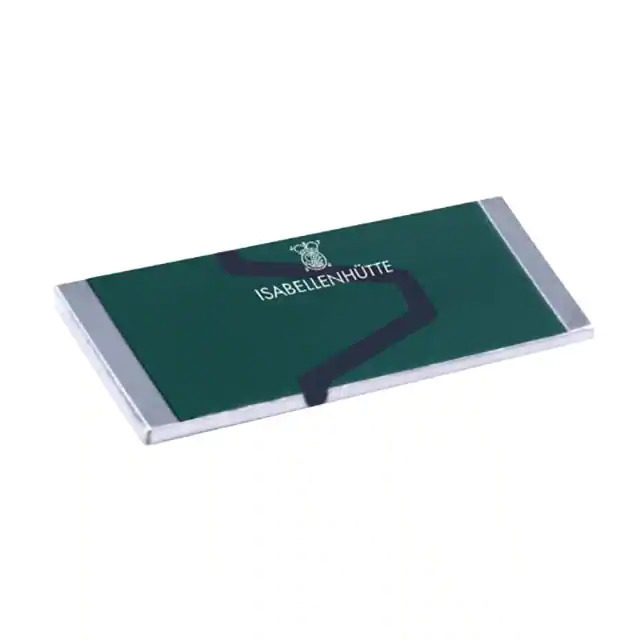

VMS-R047-1.0-U Isabellen
Same model may have multiple batches, images only for reference.

VMS-R047-1.0-U

Part No VMS-R047-1.0-U
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RES 0.047 OHM 1% 4W 2512
Datasheet
VMS-R047-1.0-U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series VMS
Package Tape & Reel
Product Status Active
Resistance 47 mOhms
Tolerance ±1%
Power (Watts) 4W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient 20ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings -
Size / Dimension 0.250" L x 0.120" W (6.35mm x 3.05mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375130-VMS-R047-1.0-U

Description

The 1375130-VMS-R047-1.0-U is an active chip resistor from Isabellenhuette USA's VMS series. It is a surface mount resistor with a resistance of 47 mOhms and a power rating of 4W. The resistor has a tolerance of ±1% and a temperature coefficient of 20ppm/°C. It is designed for automotive applications and is AEC-Q200 rated. The package size is 0.250" L x 0.120" W (6.35mm x 3.05mm), with a seated height of 0.022" (0.55mm). The 1375130-VMS-R047-1.0-U is suitable for current sensing, moisture resistance, and pulse withstanding applications.
