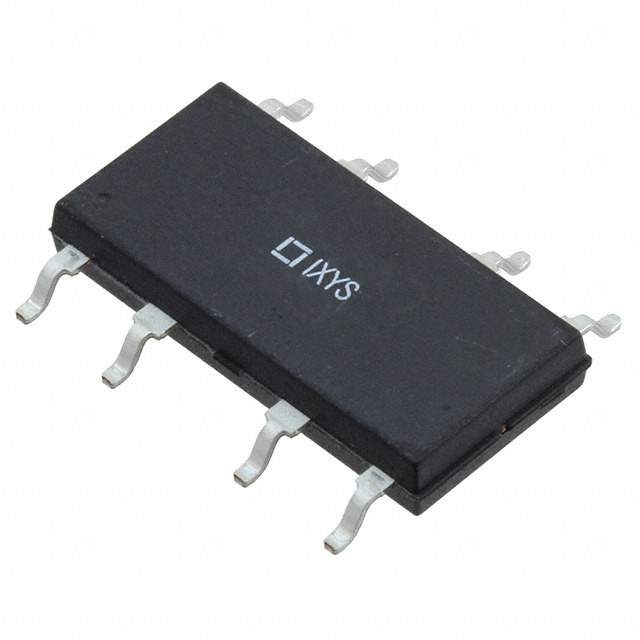

CPC1907B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr IXYS Integrated Circuits Division
Series CPC, OptoMOS®
Package Tube
Mounting SMD (SMT)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 6 A
On-State Resistance (Max) 60 mOhms
Termination Style Gull Wing
Package / Case 8-SOP (0.400", 10.16mm Width)
Supplier Device Package 8-SOIC
Base Product Number CPC1907
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Names CLA394
Standard Package 25
Win Source Part Number 1227208-CPC1907B
Ultra Librarian 3D Model Ultra Librarian CPC1907B CAD Model

Description

The CPC1907B is a solid-state relay that belongs to the CPC OptoMOS series. It features a gull-wing termination style and an 8-SOP package. The device has a standard package of 25 and is mounted through SMD (SMT) technology. It has an input voltage of 1.2VDC and an output type of AC, DC. This single-pole, single-throw relay has an on-state resistance of 60 mOhms and a load current of 6 A. The voltage-load range is 0 V to 60 V, and the device is SPST-NO (1 Form A) circuit. The CPC1907B is manufactured by IXYS Integrated Circuits Division and is a reliable choice for your relay needs.
