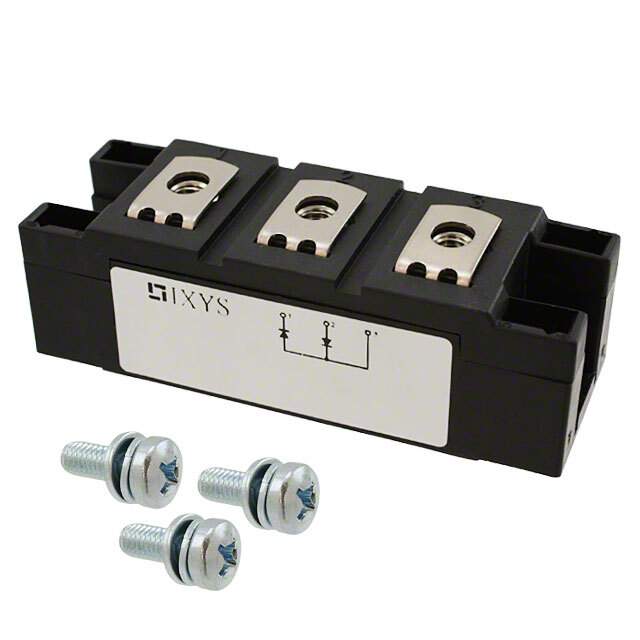

MEE250-12DA Real Image
Same model may have multiple batches, images only for reference.

MEE250-12DA

Part No MEE250-12DA
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description Fast Recovery Epitaxial Diode (FRED) Module | DIODE MODULE 1.2KV 260A Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 260A
Voltage - Forward (Vf) (Maximum) at If 1.8V at 260A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 500ns
Current - Reverse Leakage at Vr 12mA at 1200V
Mounting Style Chassis Mount
Manufacturer Package Y4-M6
Supplier Device Package Y4-M6
Family Part Number MEE
Manufacturer Pack Quantity 6
MSL Level 1 (Unlimited)
Win Source Part Number 1221704-MEE250-12DA
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MEE250-12DA CAD Model

Description

The IXYS electronic component is a discrete semiconductor product that is manufactured by IXYS.

  • Win Source Part Number: 1221704-MEE250-12DA
  • Type: Fast recovery diode
  • Diode Configuration: 1 Pair Series Connection
  • Current - Average Rectified (Io) (per diode): 260A
  • Voltage - DC Reverse (Vr) (maximum): 1200V
