Same model may have multiple batches, images only for reference.

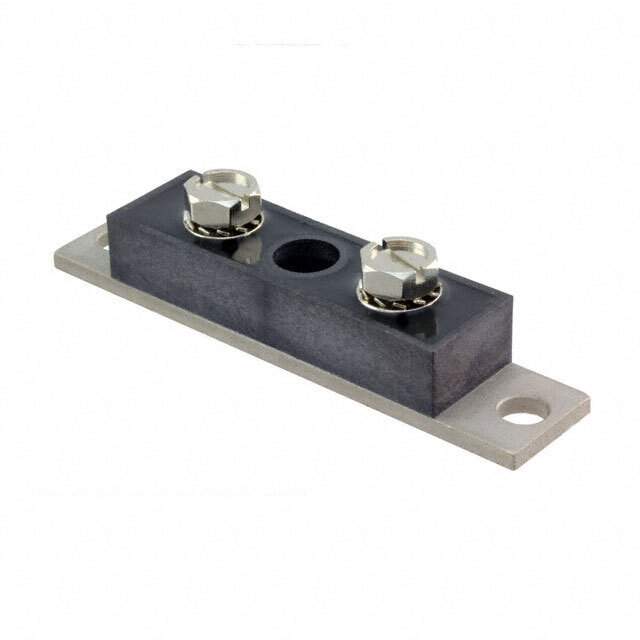

440CNQ030 Real Image
Same model may have multiple batches, images only for reference.

440CNQ030

Part No 440CNQ030
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE MODULE 30V 440A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 440A
Voltage - Forward (Vf) (Maximum) at If 600mV at 440A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 20mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package TO-244AB
Supplier Device Package TO-244AB
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1128714-440CNQ030
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 440CNQ030 CAD Model

Description

The Vishay Semiconductor Diodes Division 1128714-440CNQ030 is a Schottky diode type electronic component. It is a discrete semiconductor product with a chassis mount mounting style.

  • Mounting Style: Chassis Mount
  • Speed: Fast Recovery = 200mA (Io)
  • Diode Configuration: 1 Pair Common Cathode
  • Current - Average Rectified (Io) (per diode): 440A
  • Supply and Demand Status: Limited
  • Voltage - DC Reverse (Vr) (Maximum): 30V
  • Supplier Device Package: TO-244AB
  • Temperature Range: -55°C to 150°C
  • Win Source Part Number: 1128714-440CNQ030
