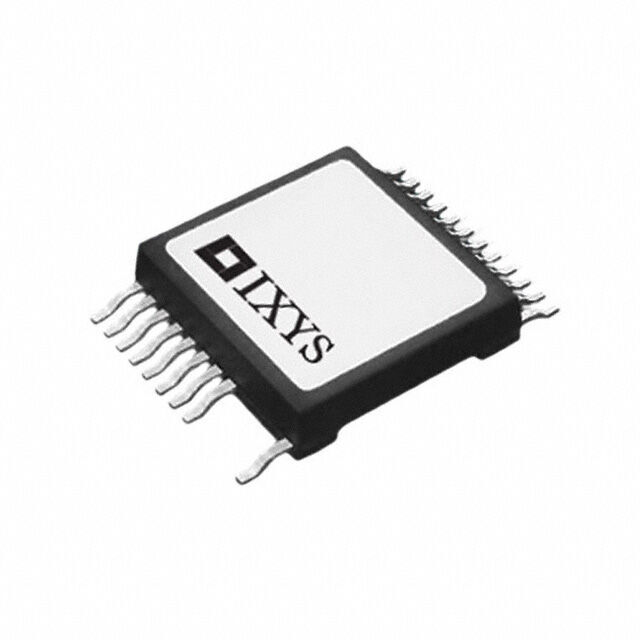

Same model may have multiple batches, images only for reference.

MMIX1F520N075T2

Name: MMIX1F520N075T2
Brand: IXYS
SKU: WS1330785
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	MMIX1F520N075T2
Manufacturer	IXYS
Catalog	FETs - Single
Description	MOSFET N-CH 75V 500A 24SMPD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr	IXYS
Series	GigaMOS?, TrenchT2?
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	500A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	545 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	41000 pF @ 25 V
Power Dissipation (Max)	830W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SMPD
Package / Case	24-PowerSMD, 21 Leads
Base Product Number	MMIX1F520
Ultra Librarian 3D Model	Ultra Librarian MMIX1F520N075T2 CAD Model
