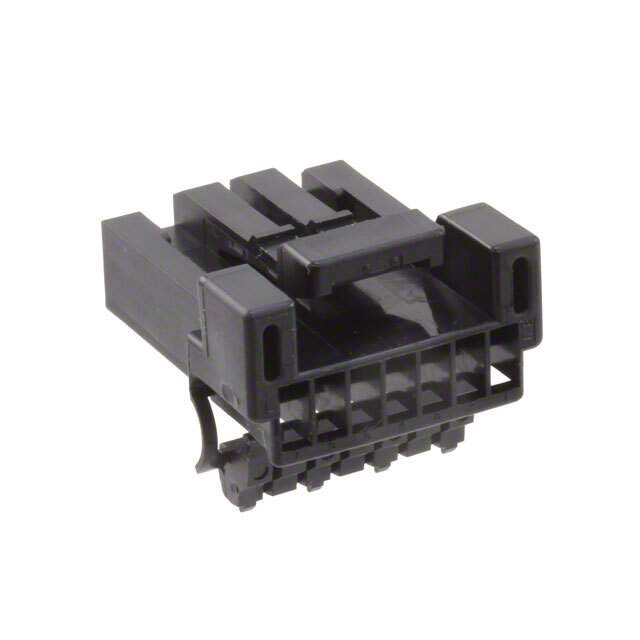

Same model may have multiple batches, images only for reference.

IL-AG5-7S-S3C1-B

Name: IL-AG5-7S-S3C1-B
Brand: JAE Electronics
SKU: 1334161
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IL-AG5-7S-S3C1-B
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 7POS 2.50MM / 7 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
Datasheet	IL-AG5-7S-S3C1-B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer	JAE Electronics
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	7
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Note	Contacts Not Included
Base Product Number	IL-AG5-7
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	ILAG57SS3C1B,-IL-AG5-7S-S3C1-B,670-2212
Standard Package	800
Win Source Part Number	1334161-IL-AG5-7S-S3C1-B
Ultra Librarian 3D Model	Ultra Librarian IL-AG5-7S-S3C1-B CAD Model

Alternative Products

Description

The JAE Electronics IL-AG5-7S-S3C1-B is a high-quality rectangular connector housing with a 7-position female socket contact type.

Positions: 7
Contact Type: Female socket
Pitch: 0.098 inches (2.50mm)
Mounting: Free hanging (in-line)
RoHS Compliant: Yes
ECCN: EAR99
Packaging: Bulk
Standard Package: 800
