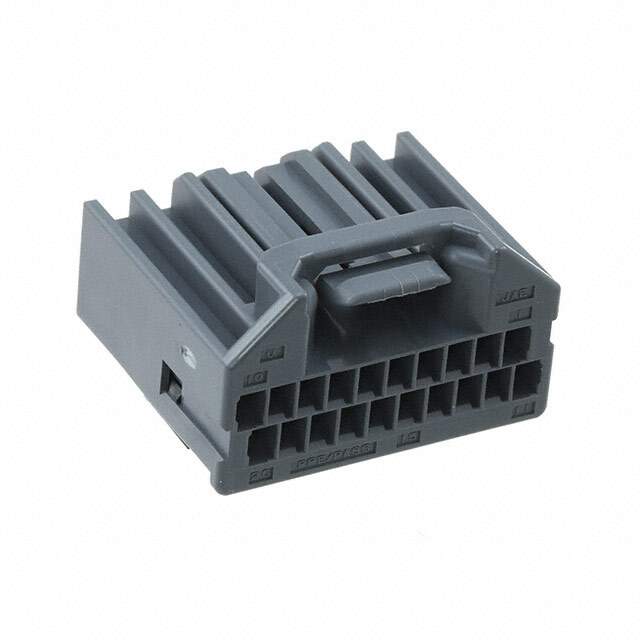

MX34020SF1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JAE Electronics
Series MX34
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Gray
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names MX34020SF1-ND,670-2925
Standard Package 576
Win Source Part Number 1121870-MX34020SF1
Ultra Librarian 3D Model Ultra Librarian MX34020SF1 CAD Model

Description

The JAE Electronics MX34020SF1 is a 20-position rectangular connector housing designed for free hanging (in-line) mounting.

  • Positions: 20
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.087 inches (2.20mm)
  • Termination: Crimp Contact
  • Series: MX34
  • Color: Gray
  • Package: 576 pieces
  • Contacts: Not Included
