Same model may have multiple batches, images only for reference.

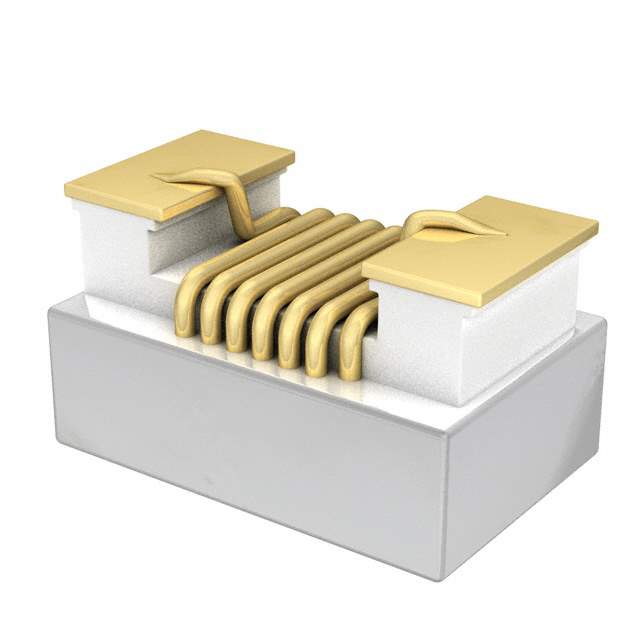

LRW0402WK47NGG001T Real Image
Same model may have multiple batches, images only for reference.

LRW0402WK47NGG001T

Part No LRW0402WK47NGG001T
Manufacturer Johanson Technology Inc.
Catalog Fixed Inductors
Description FIXED IND 47NH 100MA 830MOHM SMD / 47 nH Unshielded Drum Core, Wirewound Inductor 100 mA 830mOhm Max 0402 (1005 Metric)
Datasheet
LRW0402WK47NGG001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Johanson Technology Inc.
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 47 nH
Tolerance ±10%
Current Rating (Amps) 100 mA
Shielding Unshielded
DC Resistance (DCR) 830mOhm Max
Q @ Freq 50 @ 900MHz
Frequency - Self Resonant 2.1GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.024" (0.60mm)
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1338039-LRW0402WK47NGG001T
Ultra Librarian 3D Model Ultra Librarian LRW0402WK47NGG001T CAD Model

Description

The Johanson Technology Inc. 1338039-LRW0402WK47NGG001T is a fixed inductor with a drum core, wirewound type.

  • Inductance: 47nH
  • Tolerance: ±10%
  • DC Resistance: 830mOhm Max
  • Current Rating: 100mA
  • Self-Resonant Frequency: 2.1GHz
  • Mounting Type: Surface Mount
  • Shielding: Unshielded
  • Temperature Range: -40°C to 125°C
  • Supplier Device Package: 0402 (1005 Metric)
  • Height: 0.024" (0.60mm)
  • Common Use: Inductors, Coils, and Chokes
