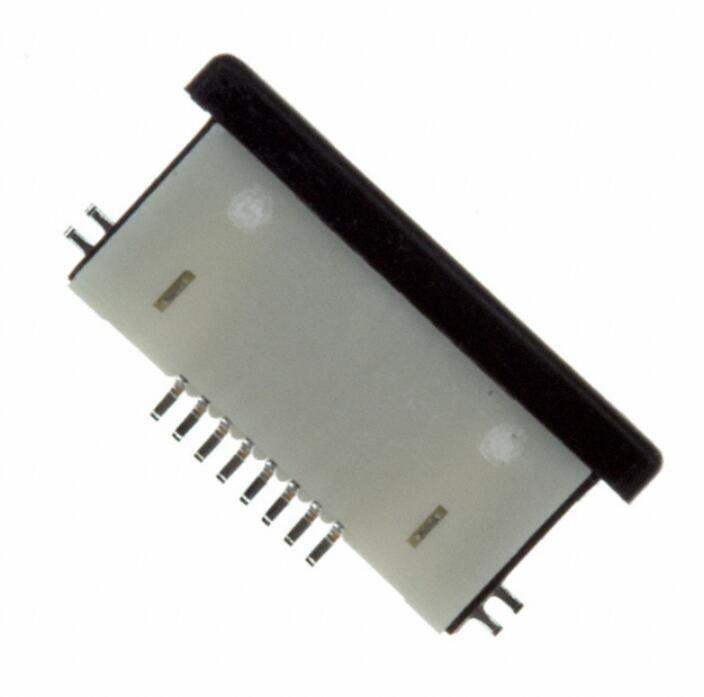

08FLZ-RSM2-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

08FLZ-RSM2-TB(LF)(SN)

Part No 08FLZ-RSM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203277-08FLZ-RSM2-TB(LF)(SN)
Win Source Part Number Cross
Manufacturer JST Sales America Inc.
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Series FLZ
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.020" (0.50mm)
Height Above Board 0.079" (2.00mm)
Ultra Librarian 3D Model Ultra Librarian 08FLZ-RSM2-TB(LF)(SN) CAD Model

Description

8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
