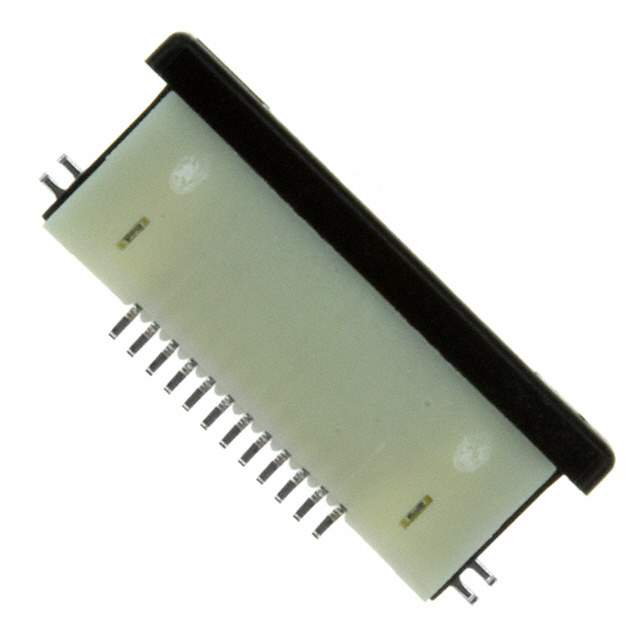

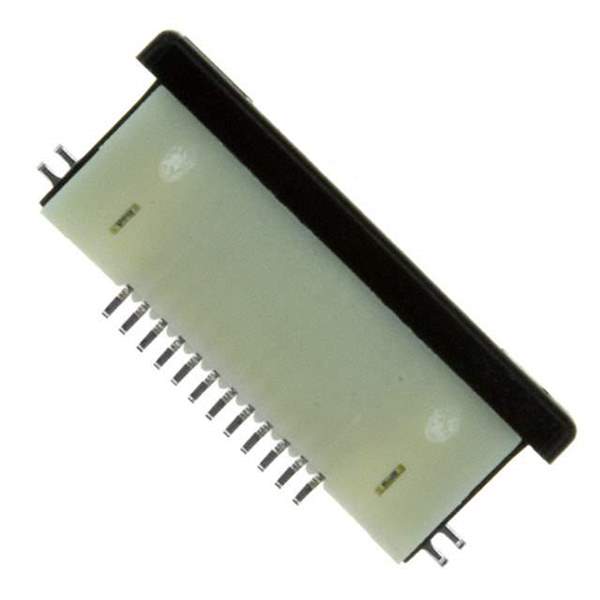

12FLZ-RSM2-TB(LF)(SN)

Part No 12FLZ-RSM2-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 12POS 0.50MM R/A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 12
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Actuator Material Polyamide (PA6T), Nylon 6T
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Natural
Actuator Color Black
Win Source Part Number 117686-12FLZ-RSM2-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 12FLZ-RSM2-TB(LF)(SN) CAD Model

Description

Description

The 12FLZ-RSM2-TB(LF)(SN) is a premium connector offering reliable performance for various electronic applications. Known for its robust construction and easy installation, this component serves as a crucial link in circuits requiring durable connections.

Features and Benefits

  • High-Quality Materials: Made with lead-free and RoHS compliant materials ensuring safety and environmental compliance.
  • Compact Design: Space-saving structure that makes it ideal for densely packed boards and systems.
  • Durable Performance: Designed to withstand mechanical stresses and provide consistent functionality.

Applications

  • Consumer Electronics
  • Telecommunication Devices
  • Industrial Automation

The 12FLZ-RSM2-TB(LF)(SN) is a versatile connector suitable for multiple projects requiring reliable connections.
