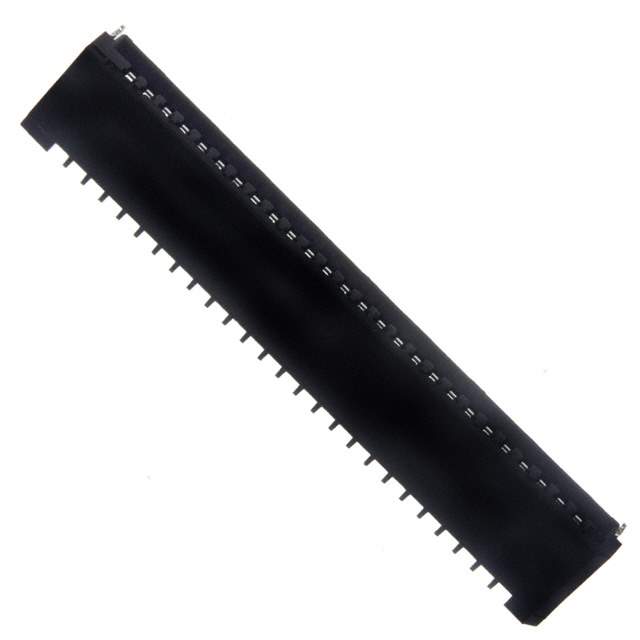

26FMN-SMT-A-TF(LF)(SN)

Name: 26FMN-SMT-A-TF(LF)(SN)
Brand: JST Sales America Inc.
SKU: 762029
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	26FMN-SMT-A-TF(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 26POS 1.00MM R/A
Datasheet	26FMN-SMT-A-TF(LF)(SN) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Series	FMN
Packaging	Reel package
Flat Flex Type	FFC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	26
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Cable End Type	Straight
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyamide (PA6T), Nylon 6T
Features	Low Insertion Force (LIF)
Voltage Rating	50V
Operating Temperature Range	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Black
Win Source Part Number	762029-26FMN-SMT-A-TF(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Family Name	FMN
Introduction Date	October 18, 2005
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 26FMN-SMT-A-TF(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 762029-26FMN-SMT-A-TF(LF)(SN) is a 26-position FFC/FPC connector manufactured by JST Sales America Inc..

Connector Type: FFC/FPC
Application: Low Insertion Force (LIF)
Pitch: 0.039" (1.00mm)
Voltage Rating: 50V
Current Rating: 0.5A
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA6T)
Popularity: Medium
Supply and Demand Status: Balanced
