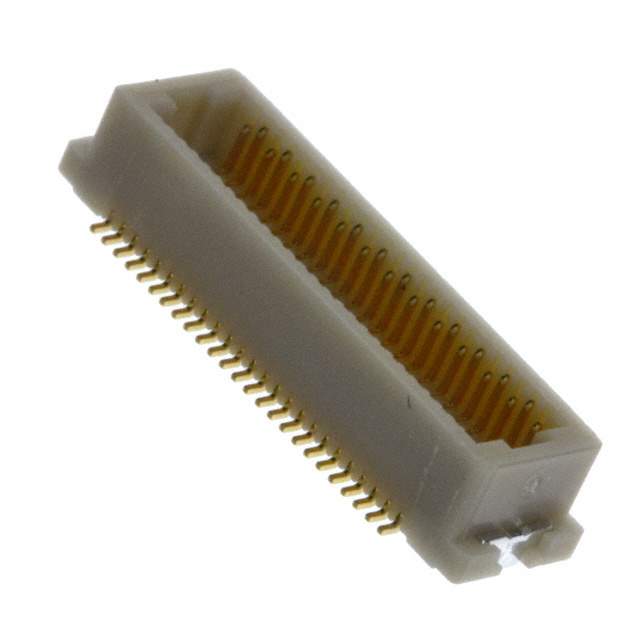

50P-JMDSS-G-1-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

50P-JMDSS-G-1-TF(LF)(SN)

Part No 50P-JMDSS-G-1-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN PLUG 50POS TOP 4.5MM GOLD
Datasheet
50P-JMDSS-G-1-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series JMD
Packaging Reel package
Connector Type Plug, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4.5mm
Win Source Part Number 763869-50P-JMDSS-G-1-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 50P-JMDSS-G-1-TF(LF)(SN) CAD Model

Description

The 763869-50P-JMDSS-G-1-TF(LF)(SN) from JST Sales America Inc. is a 50-position plug connector.

  • Contact Type: Outer shroud
  • Features: Solder retention
  • Pitch: 0.020" (0.50mm)
  • Packaging: Reel
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Height: 4.5mm
  • Mounting Type: SMD
  • Series: JMD
