Same model may have multiple batches, images only for reference.

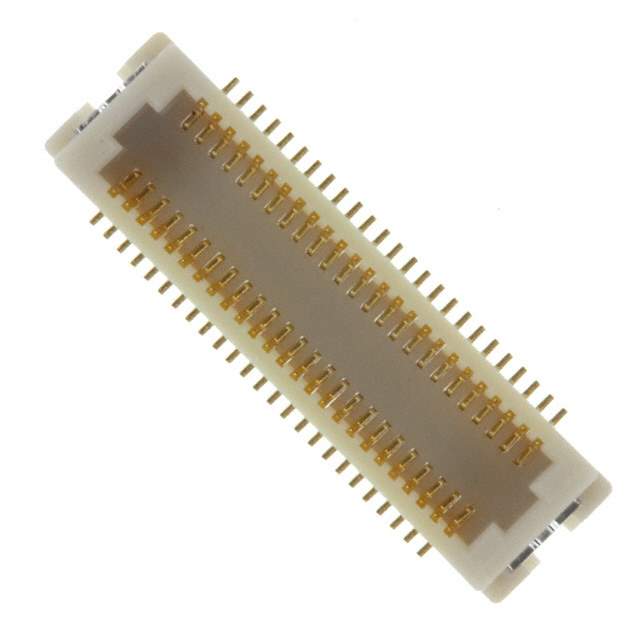

50P6.0-JMDSS-G-1-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

50P6.0-JMDSS-G-1-TF(LF)(SN)

Part No 50P6.0-JMDSS-G-1-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN PLUG 50POS SMD GOLD  /  50 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Series JMD
Package Tape & Reel
Connector Type Plug, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 6mm
Base Product Number 50P6.0-J
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 50P6.0-JMDSS-G-1-TF(S)(LF)(SN),455-1883-1,455-1883-2,50P60JMDSSG1TFLFSN,455-1883-6
Standard Package 1,500
Win Source Part Number 1191401-50P6.0-JMDSS-G-1-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 50P6.0-JMDSS-G-1-TF(LF)(SN) CAD Model

Description

The JMD series 50-position plug outer shroud contacts connector from JST Sales America Inc. is a surface mount, mezzanine (board to board) type connector.

  • Manufacturer: JST Sales America Inc.
  • Number of Positions: 50
  • Mounting Type: Surface Mount
  • Type: Mezzanine (Board to Board)
  • Pitch: 0.020 inches (0.50mm)
  • Insulation Material: Polybutylene Terephthalate (PBT) and Glass-Filled
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Solder Retention: Yes
  • Mated Stacking Height: 6mm
  • Standard Package: 1,500
  • ECCN: EAR99
