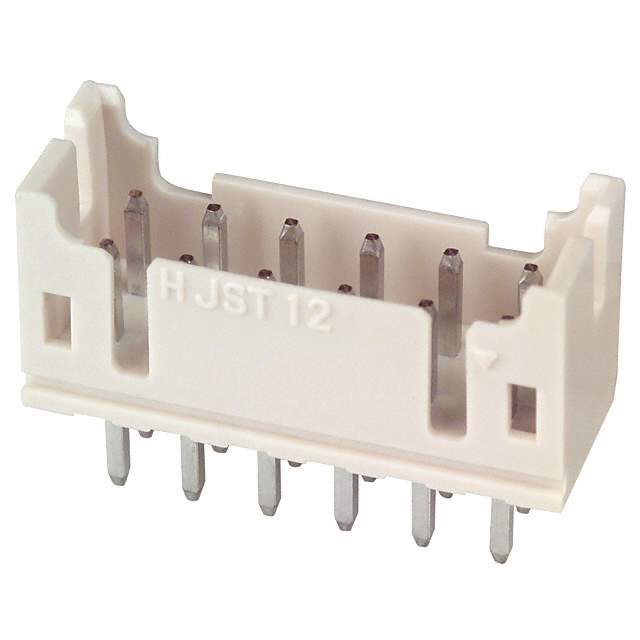

The JST Sales America Inc. 1021361-B12B-PHDSS(LF)(SN) is a board-to-cable/wire connector with 12 positions and male pins.

• Connector Type: Board-to-Cable/Wire
• Positions: 12
• Pins: Male
• Design: Shrouded, 4-Wall
• Mounting Style: Through-Hole
• Voltage Rating: 250V
• Current Rating: 3A
• Insulation Material: Polyamide (PA), Nylon, Glass-Filled
• Insulation Color: Natural
• Pitch-Mating: 0.079" (2.00mm)
• Row Spacing: 0.079" (2.00mm)
• Contact Finish (Mating and Post): Tin
• Contact Length (Mating): 0.114" (2.90mm)
• Contact Length (Post): 0.118" (3.00mm)
• Overall Contact Length: 0.291" (7.40mm)
• Insulation Height: 0.256" (6.50mm)
• Popularity: Medium
• Supply and Demand Status: Sufficient
