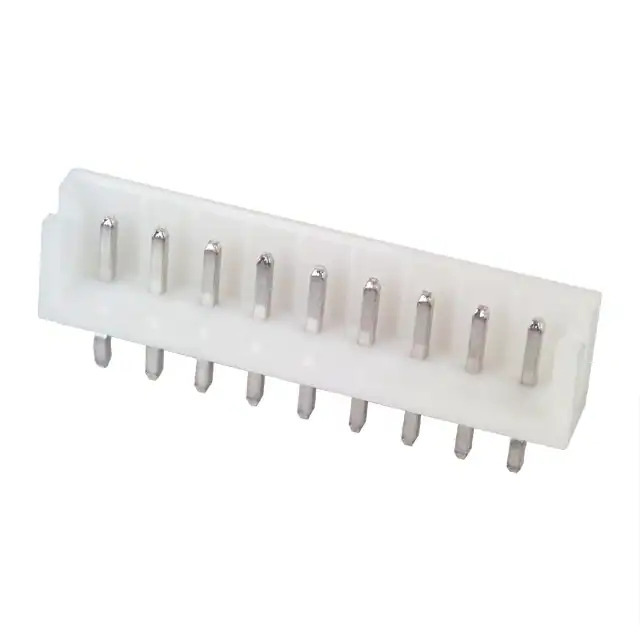

B9B-EH-A(LF)(SN)

Name: B9B-EH-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1362518
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B9B-EH-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 9POS 2.5MM / Connector Header Through Hole 9 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	EH
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	9
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	-
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.1mm
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	B9B-EH-A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362518-B9B-EH-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B9B-EH-A(LF)(SN) CAD Model

Alternative Products

Description

The 1362518-B9B-EH-A(LF)(SN) is a male pin header connector from JST Sales America Inc.'s EH series.

Application: Board to Cable/Wire
Pitch: 0.098" (2.50mm)
Number of Positions: 9
Number of Rows: 1
Shrouding: Shrouded - 3 Wall
Current Rating: 3A
Voltage Rating: 250V
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA66), Nylon 6/6
Flammability Rating: UL94 V-0
Operating Temperature: -25°C to 85°C
Packaging: Bulk
Status: Active
Features: Friction Lock
Termination: Press-Fit, Solder
Contact Length - Mating: 0.130" (3.30mm)
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.236" (6.00mm)
ECCN: Compliant
