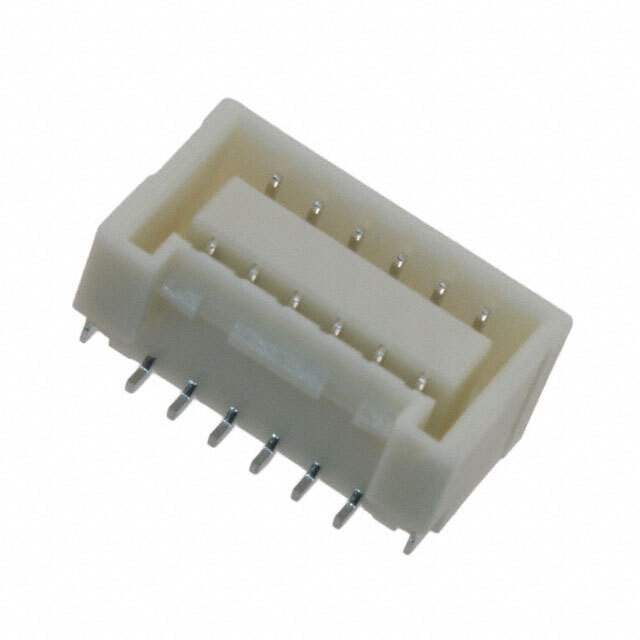

BM12B-ZPDSS-TF

Part No BM12B-ZPDSS-TF
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 12POS 1.5MM
Datasheet
BM12B-ZPDSS-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307268-BM12B-ZPDSS-TF
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Mfr JST Sales America Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian BM12B-ZPDSS-TF CAD Model

Description

  • Current rating:2A AC, DC (AWG #24)
  • Voltage rating:100V AC, DC
  • Temperature range:-25'C to +85'C (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/30m Ω max.After environmental testing/60m max.500M Ω2 min.
  • Insulation resistance:500M Ω min
  • Withstanding voltage:500V AC/minute
  • Applicable wire: Conductor size/AWG #28 to #24
    Insulation 0.D.0.8 to 1.2mmCompliant with RoHS.
  • Refer to "General Instruction and Notice when using
    Terminals and Connectors" at the end of this catalog
  • Contact JST for details.
