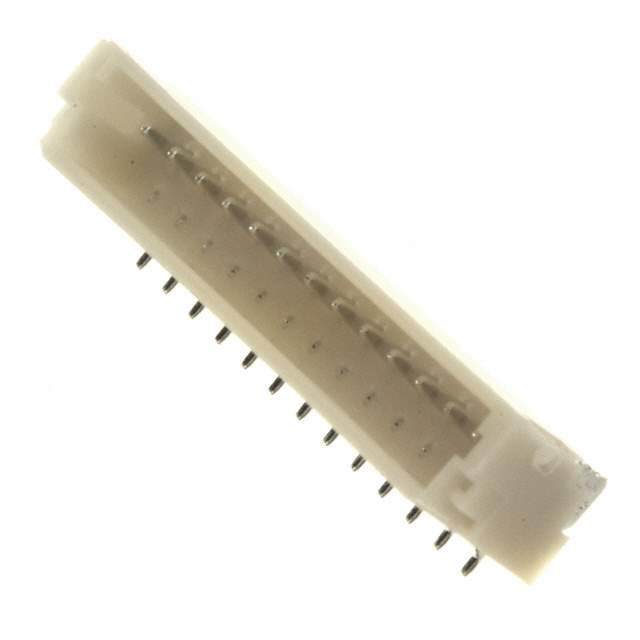

BM13B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM13B-SRSS-TB(LF)(SN)

Part No BM13B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SH 13POS TOP 1MM TIN
Datasheet
BM13B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 13
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.167" (4.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 4.9mm
Win Source Part Number 1023669-BM13B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM13B-SRSS-TB(LF)(SN) CAD Model

Description

The 1023669-BM13B-SRSS-TB(LF)(SN) connector is a header connector with 13 positions.

  • Positions: 13
  • Technology: Solder Retention
  • Voltage Rating: 50V
  • Mounting: Surface Mount
  • Pitch: 0.039" (1.00mm)
  • Contact Material: Square-shaped male pins
  • Contact Finish: Tin
  • Design: Shrouded 4-Wall
  • Material: Polyamide (PA) and Nylon
  • Temperature Range: -25°C to 85°C
  • Ideal Use: Electronic devices that require a compact and reliable connection
