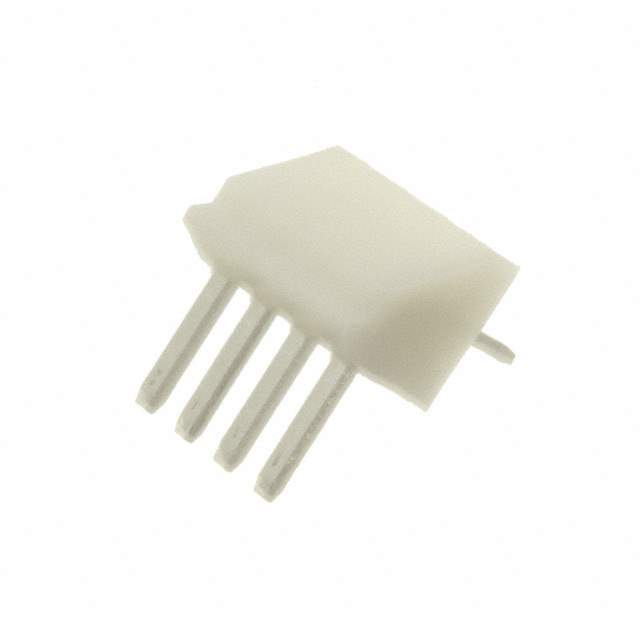

BS4P-SHF-1AA(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BS4P-SHF-1AA(LF)(SN)

Part No BS4P-SHF-1AA(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
Manufacturer JST Sales America Inc.
Series NH
Package Bulk
Operating Temperature Range -25°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name BS4P-SHF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number BS4P-SHF-1AA(LF)(SN)-ND, 455-4189
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864619-BS4P-SHF-1AA(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BS4P-SHF-1AA(LF)(SN) CAD Model

Description

The JST Sales America Inc. connector header BS4P-SHF-1AA(LF)(SN) is part of the NH series and is mounted through a hole at a right angle.

  • Positions: 4
  • Pitch: 0.098 inches (2.50mm)
  • Supply and Demand: Limited
  • Package Quantity: 500 connectors
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Production Lead Time: 33 weeks
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: BS4P-SHF-1AA(LF)(SN)-ND and 455-4189
