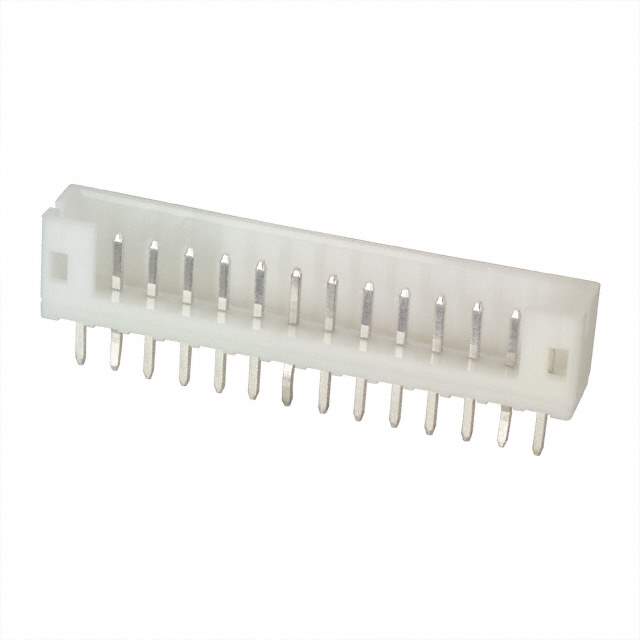

B14B-PH-K-S(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-PH-K-S(LF)(SN)

Part No B14B-PH-K-S(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 14
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.333" (8.45mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8mm
Base Product Number B14B-PH
Other Names B14BPHKSLFSN,455-1716
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293289-B14B-PH-K-S(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-PH-K-S(LF)(SN) CAD Model

Description

The 1293289-B14B-PH-K-S(LF)(SN) is a rectangular connector header from JST Sales America Inc.

  • Connector Type: Header
  • Fastening Type: Detent lock
  • Contact Type: Male pin
  • Positions: 14
  • Pitch: 0.079 inches (2.00mm)
  • Mounting: Through-hole
  • Orientation: Straight
  • Termination: Press-fit and solder
  • REACH: Unaffected
  • ECCN: EAR99
  • Application: Electronic devices requiring a secure connection
