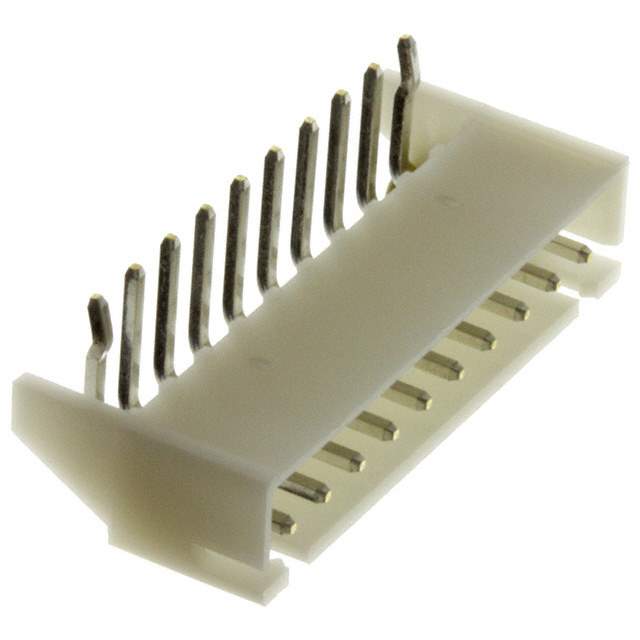

S10B-XH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S10B-XH-A(LF)(SN)

Part No S10B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S10B-XH
Other Names 455-2228,(G)S10B-XH-A(LF)(SN),S10BXHALFSN
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293246-S10B-XH-A(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S10B-XH-A(LF)(SN) CAD Model

Description

The S10B-XH-A(LF)(SN) is a rectangular connector header manufactured by JST Sales America Inc.

  • Product Name: S10B-XH-A(LF)(SN)
  • Manufacturer: JST Sales America Inc.
  • Win Source Part Number: 1293246-S10B-XH-A(LF)(SN)
  • Positions: 10
  • Positions Loaded: All
  • Termination: Press-fit and solder
  • Fastening Type: Detent Lock
  • Shrouding: 4-wall
  • Pitch-Mating: 0.098 inches
  • Mounting: Through Hole, Right Angle
  • Contact Shape: Square
  • Temperature Range: -25°C to 85°C
