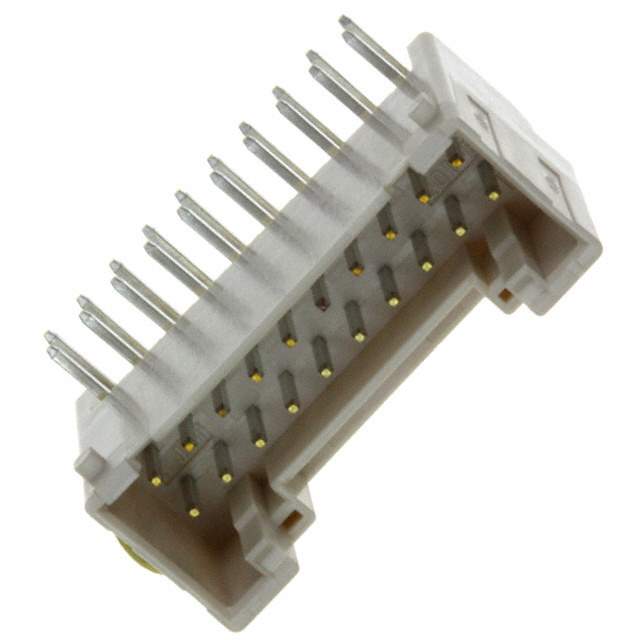

S20B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S20B-PUDSS-1(LF)(SN)

Part No S20B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S20B-PUD
Other Names S20BPUDSS1LFSN,455-2491
Standard Package 1,430
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293272-S20B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S20B-PUDSS-1(LF)(SN) CAD Model

Description

The 1293272-S20B-PUDSS-1(LF)(SN) is a rectangular connector header from JST Sales America Inc.

  • Fastening Type: Latch Holder
  • Contact Type: Male Pin
  • Positions: 20
  • Pitch: 0.079 inches (2.00mm)
  • Mounting Type: Through-Hole
  • Mounting Orientation: Right Angle
  • Termination: Solder
  • REACH Status: Unaffected
  • ECCN: EAR99
