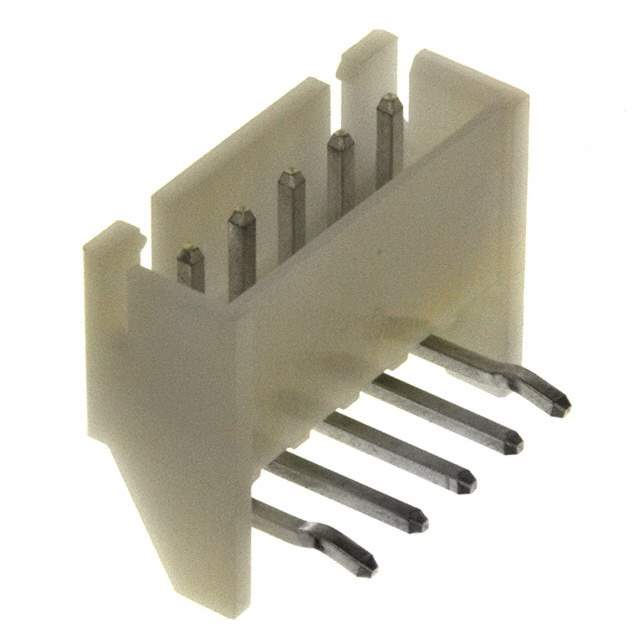

S5B-XH-A(LF)(SN)

Name: S5B-XH-A(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1332802
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S5B-XH-A(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 2.5MM / Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S5B-XH-A
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	S5BXHALFSN,(G)S5B-XH-A(LF)(SN),455-2242
Standard Package	500
Win Source Part Number	1332802-S5B-XH-A(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S5B-XH-A(LF)(SN) CAD Model

Description

The 1332802-S5B-XH-A(LF)(SN) is a 5-position male pin header connector from the XH series of JST Sales America Inc..

Application: Rectangular Connectors
Fastening Type: Detent Lock
Contact Material: Brass
Voltage Rating: 250V
Mated Stacking Heights: Not specified
Insulation Color: Natural
Contact Finish: Tin
Temperature Range: -25°C to 85°C
Application Style: Board to Cable/Wire
Insulation Height: 0.240" (6.10mm)
Contact Length of Post: 0.134" (3.40mm)
Packaging: Bulk
Standard Package: 500
