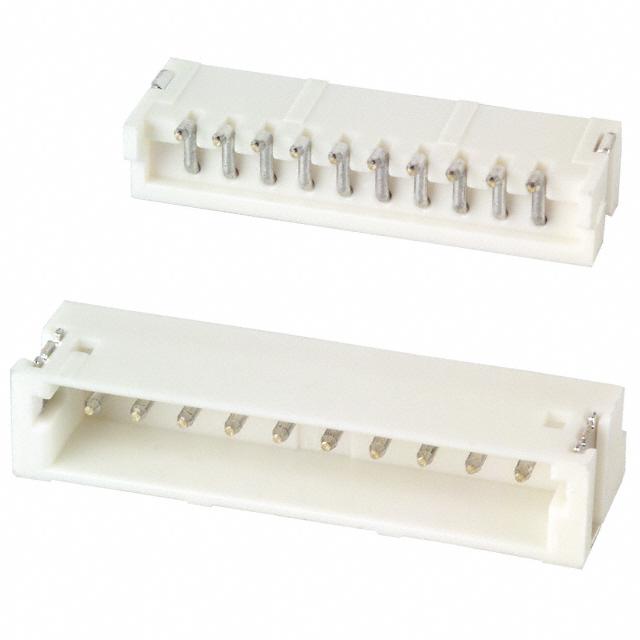

S10B-ZR-SM4A-TF(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

S10B-ZR-SM4A-TF(LF)(SN)

Part No S10B-ZR-SM4A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER ZH SIDE 10POS 1.5MM
Datasheet
S10B-ZR-SM4A-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.146" (3.71mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 3.7mm
Win Source Part Number 1093213-S10B-ZR-SM4A-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S10B-ZR-SM4A-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1093213-S10B-ZR-SM4A-TF(LF)(SN) is a header connector with 10 male pin contacts.

  • Contacts: 10 (Male Pin)
  • Features: Solder Retention
  • Application: Board to Cable/Wire
  • Shrouded: 4 Walls
  • Fastening: Detent Lock
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: Polyamide (PA6T) and Nylon 6T
  • Flammability Rating: UL94 V-0
  • Mating Pitch: 0.059" (1.50mm)
  • Mounting: Surface Mount, Right Angle
  • Temperature Range: -25°C to 85°C
  • Status: Active
