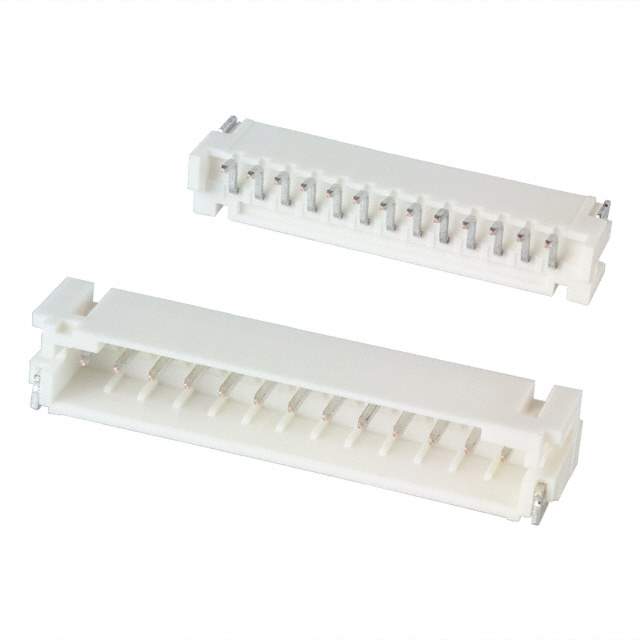

S13B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S13B-PH-SM4-TB(LF)(SN)

Part No S13B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 13POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 13
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759530-S13B-PH-SM4-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S13B-PH-SM4-TB(LF)(SN) CAD Model

Description

The S13B-PH-SM4-TB(LF)(SN) is a connector manufactured by JST Sales America Inc.

  • Supply and Demand Status: Limited
  • Connector Type: Header
  • Lock: Detent
  • Retention: Solder
  • Positions: 13
  • Mounting Style: Right Angle
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Pitch: 0.079 inches (2.00mm)
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Voltage Rating: 100V
  • Flammability Rating: UL94 V-0
