Same model may have multiple batches, images only for reference.

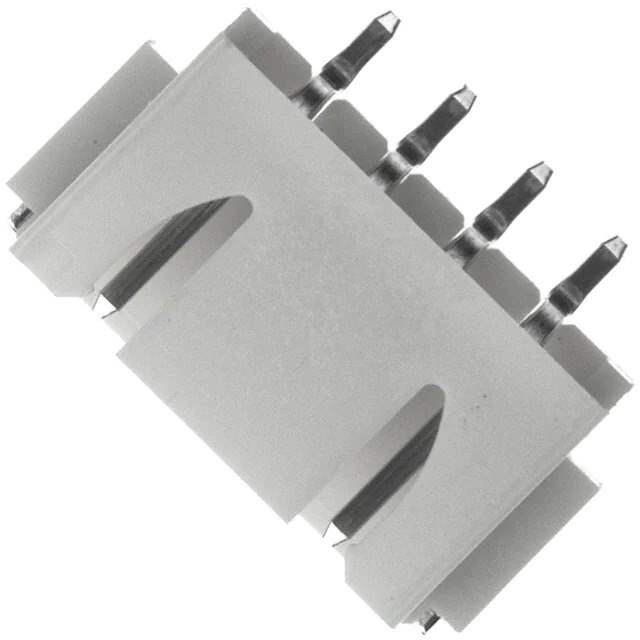

S4B-XH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S4B-XH-SM4-TB(LF)(SN)

Part No S4B-XH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2.5MM / Connector Header Surface Mount, Right Angle 4 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Base Product Number S4B-XH-S
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 851131-S4B-XH-SM4-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian S4B-XH-SM4-TB(LF)(SN) CAD Model

Description

The 851131-S4B-XH-SM4-TB(LF)(SN) is a male pin header connector from the XH series of rectangular connectors from JST Sales America Inc.

  • Connector Type: Header
  • Series: XH
  • Number of Positions: 4
  • Number of Positions Loaded: All
  • Number of Rows: 1
  • Mating Pitch: 0.098" (2.50mm)
  • Termination: Solder
  • Mounting Type: Surface Mount, Right Angle
  • Shrouding: Shrouded - 4 Wall
