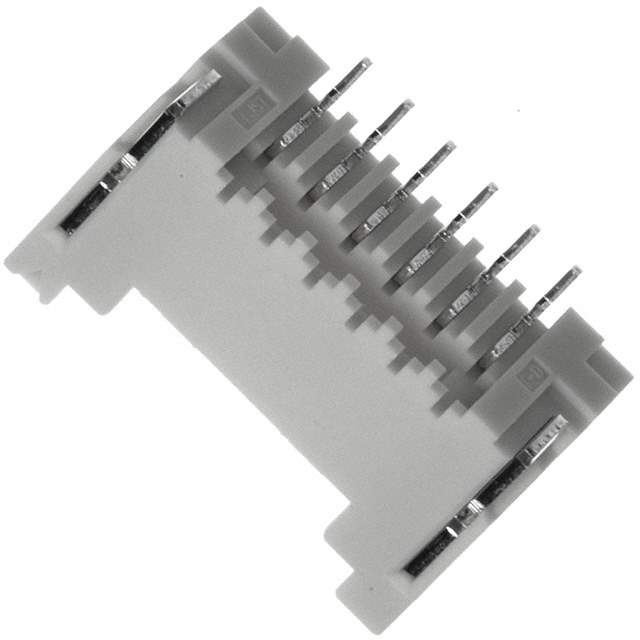

SM06B-ZESS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM06B-ZESS-TB(LF)(SN)

Part No SM06B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.228" (5.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759113-SM06B-ZESS-TB(LF)(SN)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM06B-ZESS-TB(LF)(SN) CAD Model

Description

The 759113-SM06B-ZESS-TB(LF)(SN) is a 6-position header connector with outer shroud contact type manufactured by JST Sales America Inc.

  • Number of Positions: 6
  • Contact Type: Outer Shroud
  • Pitch: 0.059 inches (1.50mm)
  • Mounting Type: Surface Mount Technology (SMT)
  • Mounting Style: Right Angle
  • Fastening Type: Locking Ramp
  • Termination Style: Solder
  • Insulation Material: Polyamide (PA) and Nylon
  • Insulation Color: Natural
  • Voltage Rating: 100V
  • Current Rating: 2A
  • RoHS Compliant: Yes
  • ECCN: EAR99
