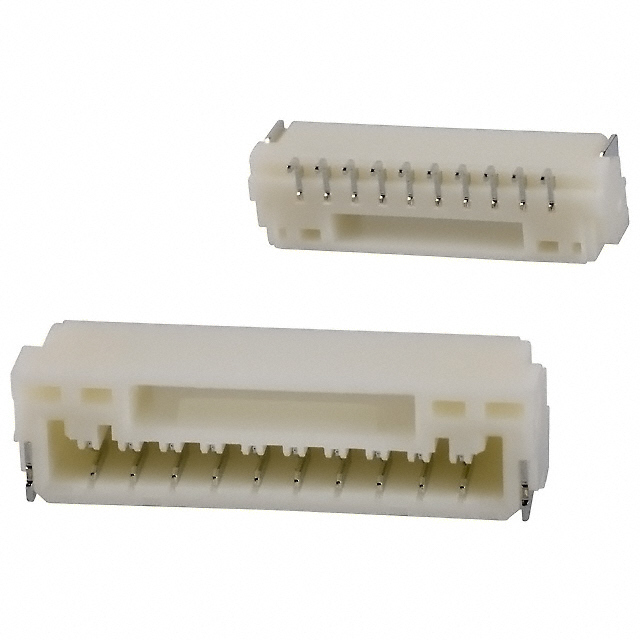

Same model may have multiple batches, images only for reference.

SM10B-GHS-TB

Name: SM10B-GHS-TB
Brand: JST Sales America Inc.
SKU: 1479801
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM10B-GHS-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	JST Sales America Inc.
Series	GH
Packaging	Reel - TR
Connector Type	Header
Contact Type	Outer Shroud Contact
Pitch - Mating	0.049" (1.25mm)
Number of Positions	10
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.167" (4.25mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA9T), Nylon 9T
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	50V
Base Product Number	SM10B-GH
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1479801-SM10B-GHS-TB
Ultra Librarian 3D Model	Ultra Librarian SM10B-GHS-TB CAD Model
