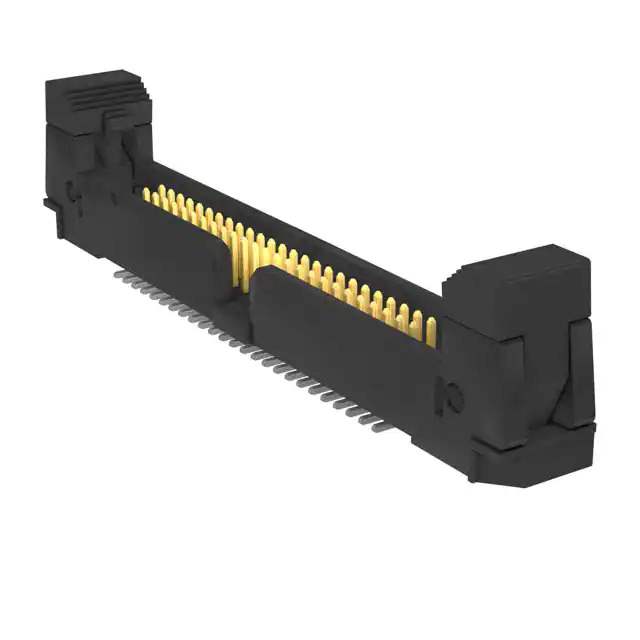

EHF-125-01-F-D-SM-TR

Part No EHF-125-01-F-D-SM-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 50POS 1.27MM / Connector Header Surface Mount 50 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series EHF
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 1.75A
Base Product Number EHF-125
Standard Package 175 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 917959-EHF-125-01-F-D-SM-TR
Ultra Librarian 3D Model Ultra Librarian EHF-125-01-F-D-SM-TR CAD Model

Description

The EHF-125-01-F-D-SM-TR is a header connector from Samtec Inc.

  • Manufacturer: Samtec Inc.
  • Series: EHF
  • Positions: 50
  • Features: Keying Slot, Latch Lock/Eject Hooks
  • Contact Type: Male Pin
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Insulation Material: Liquid Crystal Polymer (LCP) with Glass Filling
  • Pitch: 0.050" (1.27mm)
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Mounting: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Current Rating: 1.75A
