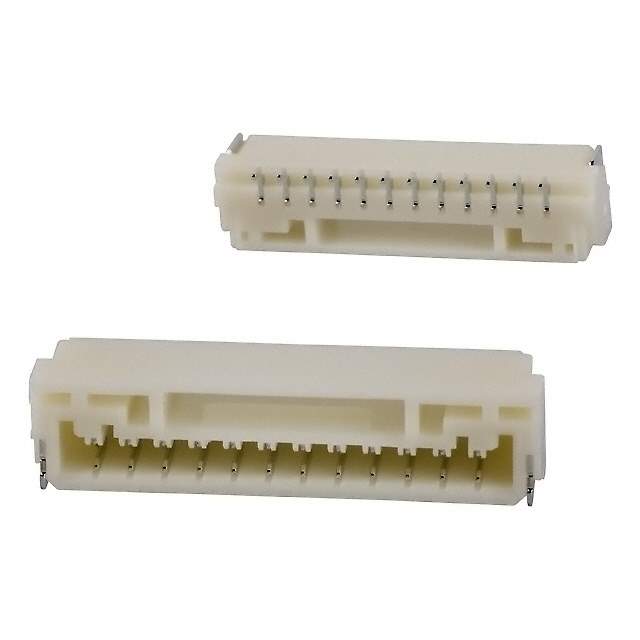

SM12B-GHS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM12B-GHS-TB(LF)(SN)

Part No SM12B-GHS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH SIDE 12POS 1.25MM
Datasheet
SM12B-GHS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.167" (4.25mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 4.35mm
Win Source Part Number 1096901-SM12B-GHS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM12B-GHS-TB(LF)(SN) CAD Model

Description

The SM12B-GHS-TB(LF)(SN) from JST Sales America Inc. is a connector electronic component that has a number of positions of 12 and is loaded with all positions.

  • Number of Positions: 12
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Mounting Style: surface mount, right angle
  • Insulation Material: polyamide (PA9T), nylon 9T
  • Supply and Demand Status: balanced
