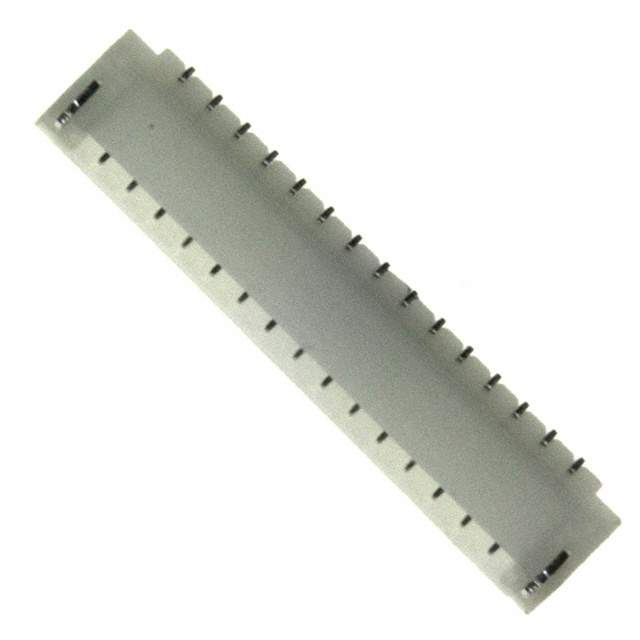

SM15B-SURS-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM15B-SURS-TF(LF)(SN)

Part No SM15B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 15POS 0.8MM / Connector Header Surface Mount, Right Angle 15 position 0.031" (0.80mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series SUR
Package Tape & Reel (TR)
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.031" (0.80mm)
Number of Positions 15
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.069" (1.75mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 0.2A, 0.5A
Voltage Rating 30V
Base Product Number SM15B-SU
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2042-2,455-2042-1,SM15BSURSTFLFSN,455-2042-6
Standard Package 3,500
Win Source Part Number 1093702-SM15B-SURS-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM15B-SURS-TF(LF)(SN) CAD Model

Description

The SM15B-SURS-TF(LF)(SN) connector is a 15-position header with outer shroud contact.

  • Product Name: SM15B-SURS-TF(LF)(SN)
  • Positions: 15
  • Contact Type: Header with Outer Shroud
  • Application: Board-to-Cable/Wire
  • Pitch: 0.031 inches (0.80mm)
  • Shroud Design: Shrouded 4-Wall
  • Voltage Rating: 30V
  • Current Rating: 0.2A or 0.5A
  • Contact Material: Copper Alloy
  • Contact Plating: Tin
  • Termination: Surface Mount, Right Angle
  • Fastening Type: Push-Pull
  • Features: Solder Retention
  • Insulation Material: Polyamide
  • Flammability Rating: UL94 V-0
  • Operating Temperature Range: -25°C to 85°C
  • Packaging: Tape and Reel
  • Standard Package: 3,500
