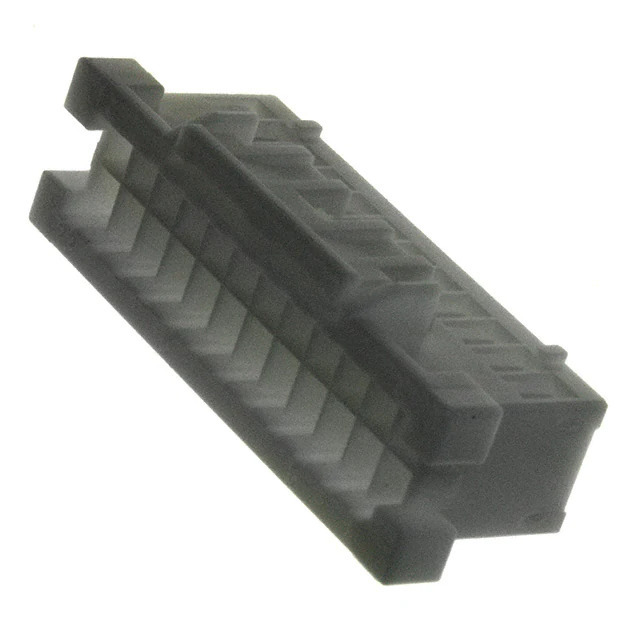

XADRP-24V JST Sales America Inc.
Same model may have multiple batches, images only for reference.

XADRP-24V

Part No XADRP-24V
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 24POS 2.50MM / 24 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 24
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.098" (2.50mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -25°C ~ 85°C
Note Contacts Not Included
Base Product Number XADR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365596-XADRP-24V
Ultra Librarian 3D Model Ultra Librarian XADRP-24V CAD Model

Description

The 1365596-XADRP-24V is a rectangular connector housing manufactured by JST Sales America Inc.

  • Series: XAD
  • Mounting Type: Free Hanging (In-Line)
  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Number of Positions: 24
  • Number of Rows: 2
  • Pitch: 0.098 inches (2.50mm)
  • Row Spacing: 0.098 inches (2.50mm)
  • Operating Temperature: -25°C to 85°C
  • Color: Natural
  • Fastening Type: Latch Lock
  • Note: Contacts Not Included
  • HTSUS: 8538.90.6000
  • ECCN: EAR99
