Same model may have multiple batches, images only for reference.

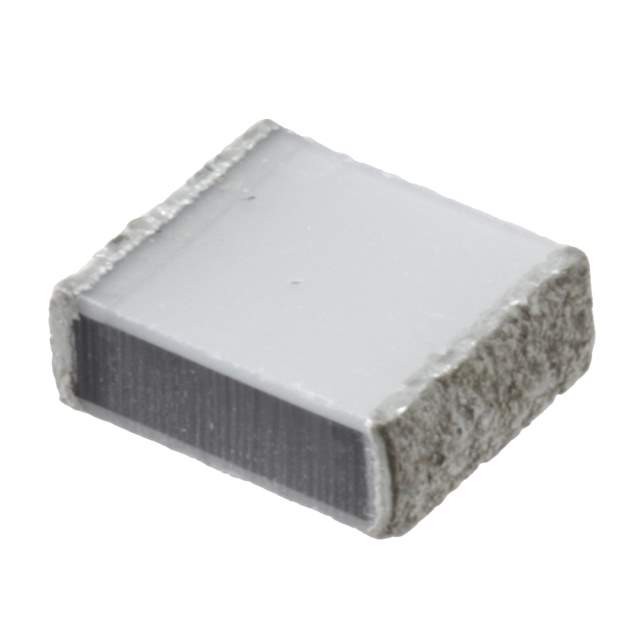

LDEDC3220JA5N00 Real Image
Same model may have multiple batches, images only for reference.

LDEDC3220JA5N00

Part No LDEDC3220JA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 63VDC 1812
Datasheet
LDEDC3220JA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 0.22μF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.185" L x 0.130" W (4.70mm x 3.30mm)
Height - Seated (Max) 0.094" (2.40mm)
Termination Solder Pads
Applications General Purpose
Features High Temperature
Win Source Part Number 117353-LDEDC3220JA5N00
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian LDEDC3220JA5N00 CAD Model

Description

The Kemet 117353-LDEDC3220JA5N00 is a high-temperature capacitor with a capacitance of 0.22μF and a voltage rating - AC of 40V and a voltage rating - DC of 63V.

  • Category: Capacitors
  • Package: reel - TR
  • Termination: solder pads
  • Application: general purpose
  • Dimension: 0.185" L x 0.130" W (4.70mm x 3.30mm)
  • Height: 0.094" (2.40mm)
