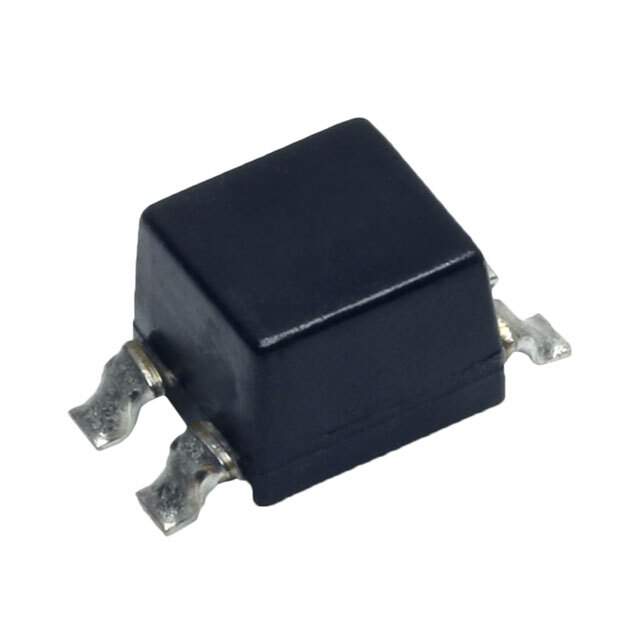

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer Kemet
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 700 Ohms at 10MHz
Inductance at Frequency 700μH at 10MHz
Current Rating (Maximum) 1A
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 85°C
Mounting Style SMD
Parts Dimension 0.197" L x 0.217" W (5.00mm x 5.50mm)
Height (Maximum) 0.165" (4.20mm)
Manufacturer Package Vertical, 4 Gull Wing
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 203394-M-521CT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian M-521CT CAD Model

Description

The Kemet M-521CT is a signal line filter with two lines. Suitable for use in various electronic applications, it can be incorporated into different designs. The filter comes with a Win Source part number of 203394 and is packaged on a reel. It is designed to operate within a temperature range of -25°C to 85°C and has a maximum current rating of 1A. The estimated End of Life (EOL) date for this product is obsolete/end of life.
