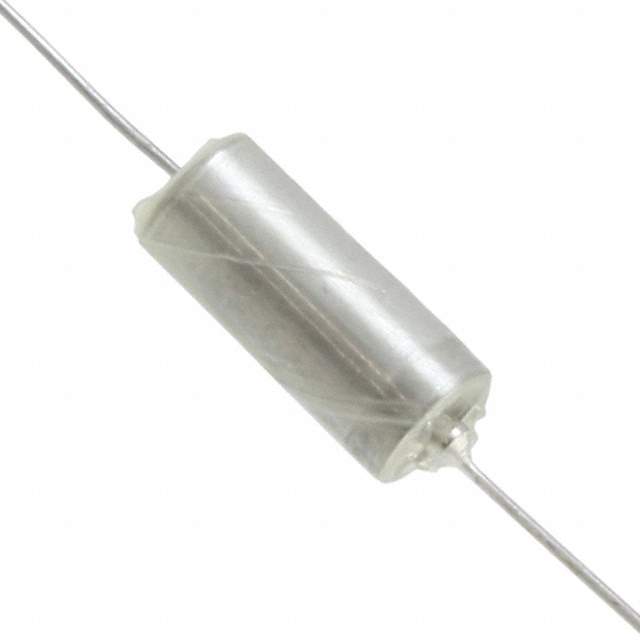

M39003/01-2306 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2306

Part No M39003/01-2306
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 35V AXIAL / 22 µF Hermetically Sealed Tantalum Capacitors 35 V Axial 1.3Ohm
Datasheet
M39003/01-2306 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Kemet
Series Military, MIL-PRF-39003/1, CSR13
Package Tray
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 35 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 1.3Ohm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.289" Dia x 0.822" L (7.34mm x 20.88mm)
Height - Seated (Max) -
Lead Spacing -
Manufacturer Size Code C
Features High Reliability
Failure Rate M (1%)
Base Product Number M39003/01
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0020
California Prop 65 Warning Information
Standard Package 20 pcs
Win Source Part Number 1383575-M39003/01-2306
Ultra Librarian 3D Model Ultra Librarian M39003/01-2306 CAD Model

Description

The M39003/01-2306 is a tantalum capacitor in the capacitors category.

  • Series: Military series MIL-PRF-39003/1, CSR13
  • Description: Hermetically sealed capacitor designed for high reliability
  • Package: Tray
  • Size: 0.289" Dia x 0.822" L (7.34mm x 20.88mm)
  • Capacitance: 22µF
  • Tolerance: ±10%
  • Rated Voltage: 35V
  • ESR (Equivalent Series Resistance): 1.3Ohm
  • Failure Rate: M (1%)
  • Mounting Type: Through-hole
  • Package/Case: Axial
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: Kemet
  • RoHS Compliant: No
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
