Same model may have multiple batches, images only for reference.

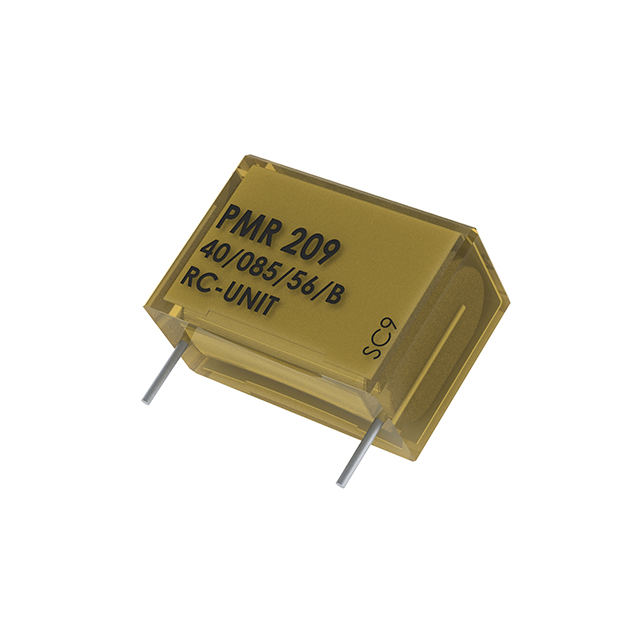

PMR209ME6220M470R30 Real Image
Same model may have multiple batches, images only for reference.

PMR209ME6220M470R30

Part No PMR209ME6220M470R30
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 20% 630VDC RAD / 0.22 µF Film Capacitor 250V 630V Paper, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PMR209
Package Box
Capacitance 0.22 µF
Tolerance ±20%
Voltage Rating - AC 250V
Voltage Rating - DC 630V
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.201" L x 0.602" W (30.50mm x 15.30mm)
Height - Seated (Max) 0.866" (22.00mm)
Termination PC Pins
Lead Spacing 1.000" (25.40mm)
Applications EMI, RFI Suppression
Ratings X2
Base Product Number PMR209
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-PMR209ME6220M470R30
Standard Package 75
Win Source Part Number 1078499-PMR209ME6220M470R30
Ultra Librarian 3D Model Ultra Librarian PMR209ME6220M470R30 CAD Model

Description

The Kemet PMR209ME6220M470R30 is a radial, through-hole film capacitor that is designed for EMI and RFI suppression.

  • Capacitance: 0.22 µF
  • Voltage Rating: 630V DC or 250V AC
  • Tolerance: ±20%
  • X2 Rating: X2
  • Height: 22 mm
  • Width: 15.3 mm
  • Family Name: PMR209
  • ECCN: EAR99
  • Estimated Production Lead Time: Not Applicable
  • REACH Status: REACH unaffected
  • HTSUS Code: 8532.25.0010
  • Other Part Numbers: ECQ-U3A224MG, ECQ-U2A224ML, ECQ-UAAF224M
