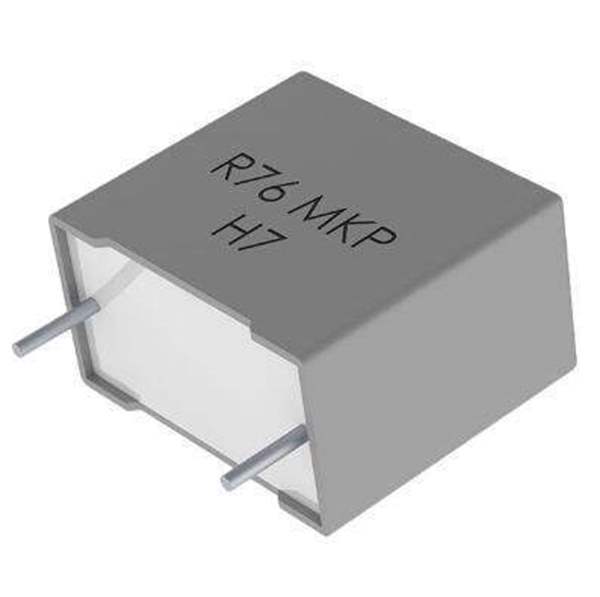

R76MD1470SE30J KEMET
Same model may have multiple batches, images only for reference.

R76MD1470SE30J

Part No R76MD1470SE30J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 4700PF 5% 400VDC RADIAL
Datasheet
R76MD1470SE30J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Active
Capacitance 4700 pF
Tolerance ±5%
Voltage Rating - AC 250V
Voltage Rating - DC 400V
Operating Temperature -55°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 0.394" L x 0.118" W (10.00mm x 3.00mm)
Height - Seated (Max) 0.319" (8.10mm)
Win Source Part Number WS1306605-R76MD1470SE30J
Ultra Librarian 3D Model Ultra Librarian R76MD1470SE30J CAD Model

Description

Benefits<br /> • Voltage range: 250 – 2,000 VDC • Capacitance range: 100 pF – 12 µF • Lead Spacing: 7.5 mm – 37.5 mm • Capacitance tolerance: ±2.5%, ±5%, ±10% • Climatic category: 55/110/56 IEC 60068–1<br /> • Operating temperature range of −55°C to +110°C • RoHS compliance and lead-free terminations • Tape & Reel packaging in accordance with IEC 60286–2 • Self-healing • Automotive (AEC–Q200) grade up to lead spacing 22.5 mm<br />
