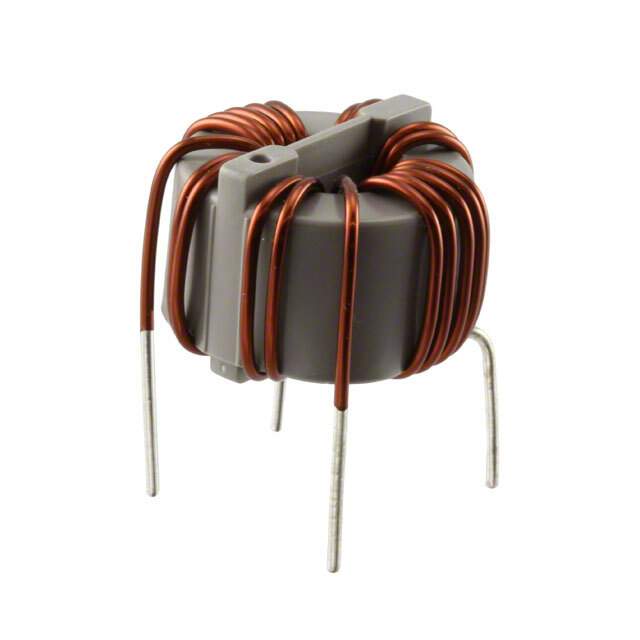

Same model may have multiple batches, images only for reference.

SC-10-D050

Name: SC-10-D050
Brand: Kemet
SKU: 1277039
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SC-10-D050
Manufacturer	Kemet
Catalog	Common Mode Chokes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	KEMET
Series	SC
Package	Bulk
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	50 µH @ 100 kHz
Current Rating (Max)	10A
DC Resistance (DCR) (Max)	16mOhm
Voltage Rating - DC	250V
Voltage Rating - AC	250V
Temperature Range - Operating	-25°C ~ 105°C
Mounting Type	Through Hole
Dimension	1.339" Dia (34.00mm)
Height (Max)	0.906" (23.00mm)
Package / Case	Horizontal, No Base, 4 PC Pin
Base Product Number	SC-10
Other Names	399-10766,UALSC10D050000
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.31.4065
Win Source Part Number	1277039-SC-10-D050
Ultra Librarian 3D Model	Ultra Librarian SC-10-D050 CAD Model

Alternative Products

Description

The KEMET SC series common mode choke is a power line filter designed to suppress electromagnetic interference (EMI) in electronic circuits. With a temperature range of -25°C to 105°C, this common mode choke is an excellent choice for a wide range of environments.

Voltage Rating: 250V AC and DC
Current Rating: 10A
Inductance: 50µH @ 100 kHz
DC Resistance: 16mOhm
Height: 23.00mm
Package: Bulk package
Mounting Type: Through hole
Temperature Range: -25°C to 105°C
