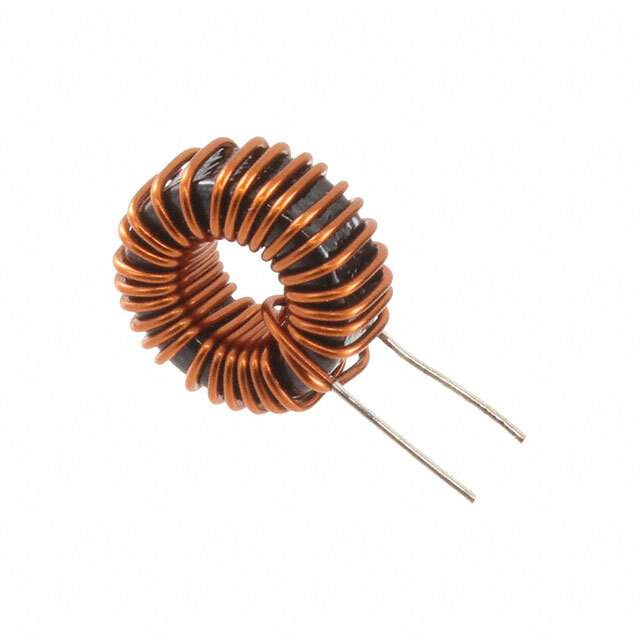

Same model may have multiple batches, images only for reference.

SHBC10-0R8A0038V

Name: SHBC10-0R8A0038V
Brand: Kemet
SKU: 1272740
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SHBC10-0R8A0038V
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SHBC
Package	Bulk
Type	Toroidal
Material - Core	Alloy Powder
Inductance	38 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Shielding	Unshielded
DC Resistance (DCR)	31.2mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	Radial
Dimension	0.846" Dia (21.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Base Product Number	SHBC10
Other Names	UALS100R8A0038,399-19134
Standard Package	240
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272740-SHBC10-0R8A0038V
Ultra Librarian 3D Model	Ultra Librarian SHBC10-0R8A0038V CAD Model

Alternative Products

Description

The KEMET SHBC10-0R8A0038V is a fixed inductor with a toroidal type and an inductance of 38 µH.

Tolerance: ±20%
Shielding: Unshielded
Package: Bulk
Standard Package: 240 pieces
Height Seated (max): 0.846" (21.50mm)
Package/Case: Radial, vertical (open)
DC Resistance (DCR): 31.2mOhm Max
Current Rating: 3 A
Core Material: Alloy powder
Temperature Range: -40°C to 125°C
Series: SHBC series from KEMET
