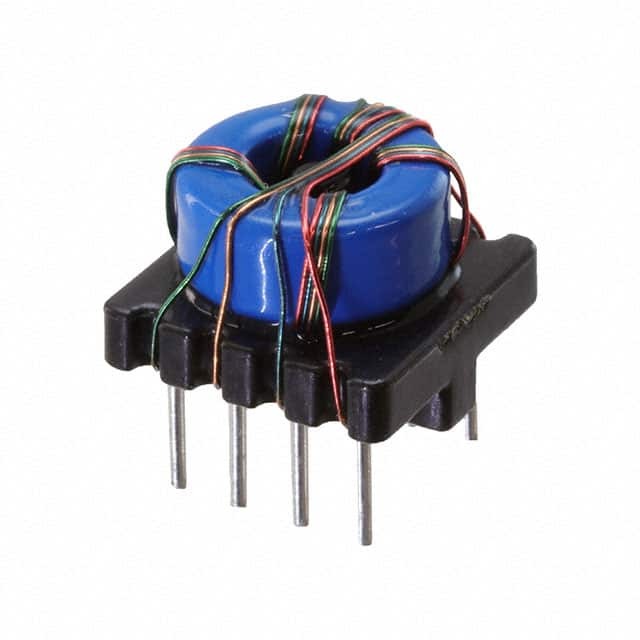

ST-204A1 Kemet
Same model may have multiple batches, images only for reference.

ST-204A1

Part No ST-204A1
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 500MA 4LN 250 OHM TH
Datasheet
ST-204A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Product Status Active
Number of Lines 4
Impedance @ Frequency 250 Ohms @ 10 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Through Hole
Size / Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height (Max) 0.433" (11.00mm)
Package / Case Horizontal, 8 PC Pin
Standard Package 600 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277111-ST-204A1
Ultra Librarian 3D Model Ultra Librarian ST-204A1 CAD Model

Description

The ST-204A1 is a common mode choke manufactured by KEMET.

  • Series: ST
  • Application: Filtering
  • Size: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • Current Rating: 500mA (max)
  • Package: Horizontal, 8 PC pin
  • Mounting: Through-Hole
  • Impedance: 250 Ohms @ 10 MHz
  • Temperature Range: -20°C to 75°C
  • Status: Active
