Products specifications

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Cylindrical, Holder
Style Holder (Open)
Battery Cell Size AA
Number of Cells 1
Mounting Type PCB, Through Hole
Termination Style PC Pin
Height Above Board 0.600" (15.24mm)
Temperature Range - Operating -50°C ~ 145°C
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 905035-1028
Ultra Librarian 3D Model Ultra Librarian 1028 CAD Model

Description

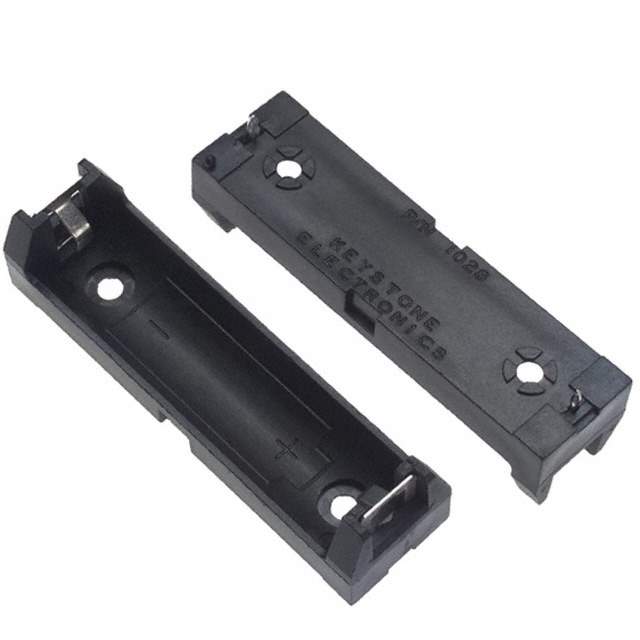

The Battery Holder is a convenient and reliable accessory for holding and securing batteries in electronic devices.

  • Battery Size: AA
  • Cell Count: 1
  • Termination Style: PC Pin
  • Height Above Board: 0.600" (15.24mm)
  • Operating Temperature: -50°C to 145°C
  • Application: Battery Products
  • Standard Package: 50 pcs
