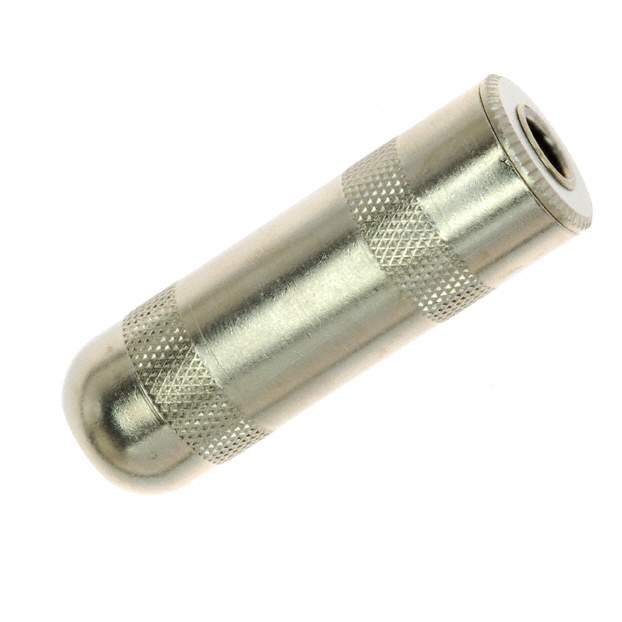

1230 Real Image
Same model may have multiple batches, images only for reference.

1230

Part No 1230
Manufacturer Keystone Electronics
Catalog Terminals
Description CONN PC PIN CIRC 0.156DIA NICKEL / PC Pin Terminal Connector Through Hole Nickel 0.156" (3.96mm) Dia
Datasheet
1230 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin, Single Post Connectors
Manufacturer Keystone Electronics
Packaging Bulk
Terminal Type PC Pin
Terminal Style Single End
Pin Size - Above Flange 0.156" (3.96mm) Dia
Pin Size - Below Flange 0.156" (3.96mm) Dia
Length - Above Flange 0.347" (8.81mm)
Length - Below Flange 0.125" (3.18mm)
Length - Overall 0.504" (12.80mm)
Flange Diameter 0.215" (5.46mm)
Mounting Through Hole
Termination Staking Flare
Insulation Non-Insulated
Board Thickness 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material Brass
Contact Finish Nickel
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 1230K,1230K-ND,36-1230
Standard Package 100
Win Source Part Number 1333815-1230
Ultra Librarian 3D Model Ultra Librarian 1230 CAD Model

Description

This Keystone Electronics PC Pin Single Post Connector is designed for use in electronic applications that require a reliable and sturdy connection.

  • Termination: Staking Flare
  • Material: Brass
  • Finish: Nickel
  • Insulated: Non-Insulated
  • Mounting Hole Diameter: 0.062-0.093 inches
  • Flange Diameter: 0.215 inches
  • Overall Length: 0.504 inches
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
  • Packaging: Bulk
  • Standard Package: 100
