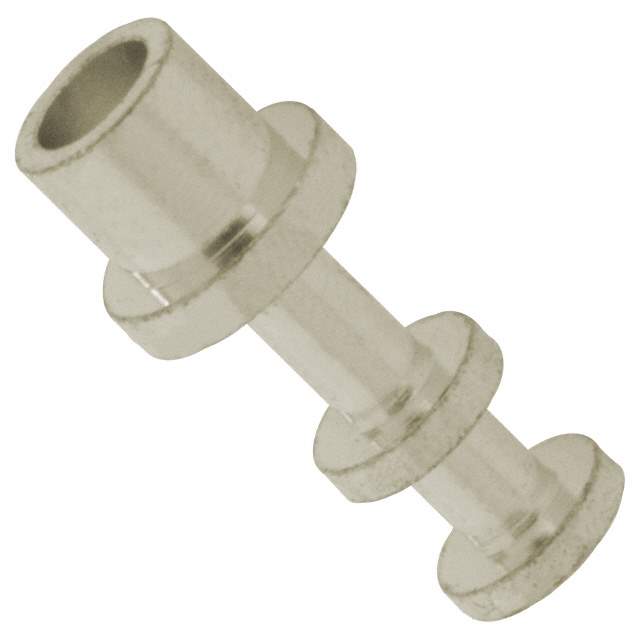

1502-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Turret Connectors
Manufacturer Keystone Electronics
Packaging Bulk
Terminal Type Single End
Number of Turrets Double
Length - Above Board 0.219" (5.56mm)
Length - Below Flange 0.078" (1.98mm)
Length - Overall 0.297" (7.54mm)
Mounting Through Hole
Termination Staking Flare
Flange Diameter 0.125" (3.18mm)
Diameter - Turret Head 0.093" (2.36mm)
Staking Side OD 0.090" (2.29mm)
Mounting Hole Diameter 0.094" (2.39mm)
Board Thickness 0.032" (0.81mm)
Contact Material Brass
Contact Finish Tin
Insulation Non-Insulated
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number KEY1227-ND,1502-1K-NDR,Q2532505B,1502-1K-ND,KEY1227,36-1502-1,1502-1K-NDL,1502-1K
Standard Package 100
Win Source Part Number 1333425-1502-1
Ultra Librarian 3D Model Ultra Librarian 1502-1 CAD Model

Description

The Keystone Electronics Turret Connector is a through-hole mounting connector used in various electronic applications.

  • Mounting Type: Through-hole
  • Standard Package: 100 pieces
  • Insulation: Non-insulated
  • Length: 0.297" (7.54mm)
  • Mounting Hole Diameter: 0.094" (2.39mm)
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99
