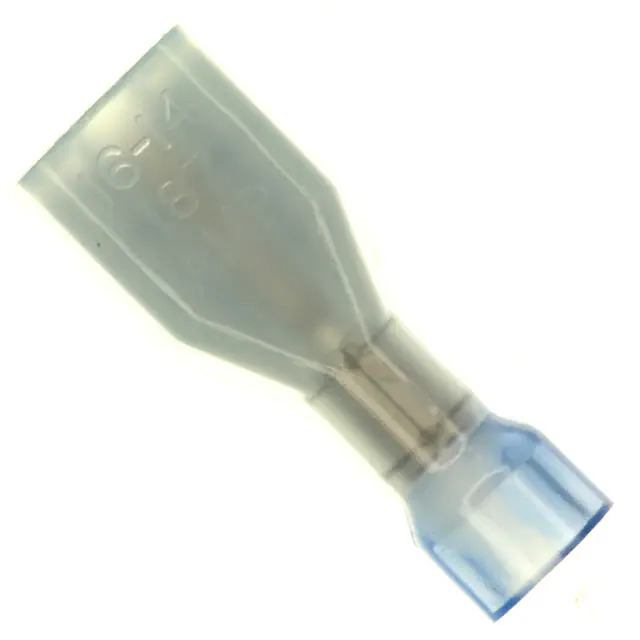

3-520412-2 TE Connectivity
Same model may have multiple batches, images only for reference.

3-520412-2

Part No 3-520412-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast Plus
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.160" (2.29mm ~ 4.06mm)
Base Product Number 520412
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364759-3-520412-2
Ultra Librarian 3D Model Ultra Librarian 3-520412-2 CAD Model

Description

The 1364759-3-520412-2 is a quick connect, quick disconnect terminal manufactured by TE Connectivity AMP Connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Ultra-Fast Plus
  • Packaging: Bulk
  • Product Status: Active
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
  • Insulation: Fully Insulated
  • Length: 0.855" (21.72mm)
  • Wire Gauge: 14-16 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
  • Terminal Type: Standard
  • Terminal Gender: Female
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.090" to 0.160" (2.29mm to 4.06mm)
