Same model may have multiple batches, images only for reference.

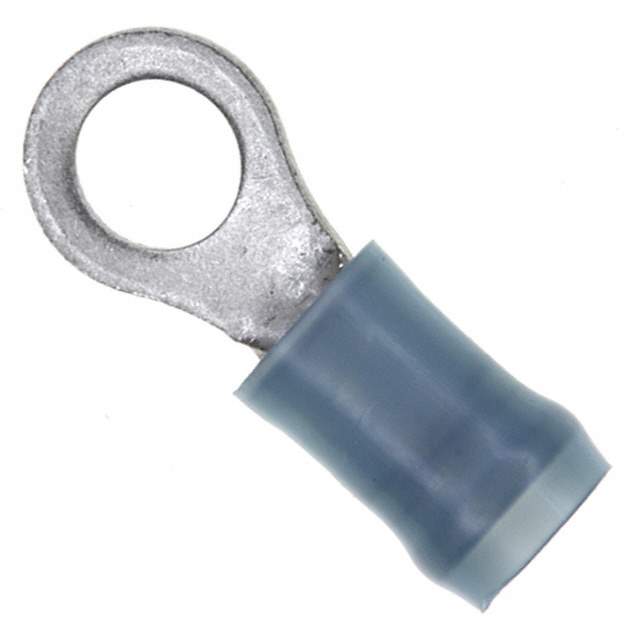

53942-1 Real Image
Same model may have multiple batches, images only for reference.

53942-1

Part No 53942-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-16AWG #10  /  Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.813" (20.65mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 53942
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 539421,A27260,53942-1-ND
Standard Package 1,000
Win Source Part Number 1010826-53942-1
Ultra Librarian 3D Model Ultra Librarian 53942-1 CAD Model

Description

The PIDG series ring connectors are ideal for use in a variety of electronic applications.

  • Termination Type: Crimp
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA) and Nylon
  • Terminal Type: Circular
  • Stud/Tab Size: 10
  • Thickness: 0.031 inches (0.79mm)
  • Width: 0.312 inches (7.92mm)
  • Length: 0.813 inches (20.65mm)
  • Packaging: Bulk
  • Standard Package: 1,000
